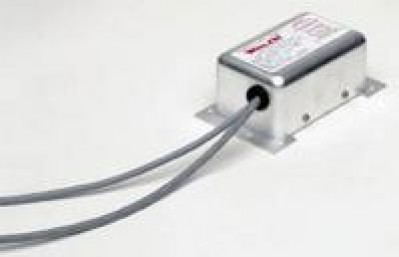

Whelen Power Supplies Model A490TCcf Series

$845.00/Each
Quantity
Add to Wishlist
Part# 11-02661
MFR Model# 01-0770006-09

Overview

A490TCCF series is the same as the A490TCF but has a mounting plate with additional holes that directly replaces factory installed systems on single engine Cessna’s, Aero Commanders, and Grumman Americans.

Specifications

  • Drawing Number: 70006
  • Power Consumption: 1.7 amps @ 14 VDC; 0.85 amps @ 28 VDC
  • Weight: 1.2 lbs. (544gm)
  • Length: 5.0” (127mm)
  • Width: 3.12” (79mm)
  • Height: 2.38” (60mm)

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this power supply compatible with the original Aeroflash strobe tube?

Yes, it is.

Q: is it the replacement for this part number 11-04494?

Yes that is correct.
