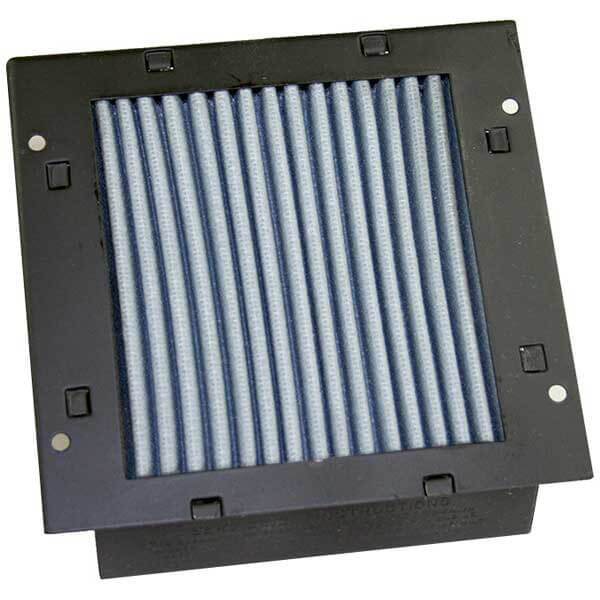

Air-Maze U2-849 Aeronca Air Filter

Add to Wishlist
Part# 2-849
MFR Model# U2-849


Filter for Aeronca 7AC and 11AC

For new installation, P/N 24306 and P/N 24308 are required.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items


Filter was as advertised. Fit perfectly. BUT packaging resulted in crushed element on arrival. Spent several hours trying to straighten.

Mike B Verified Purchase


February 21, 2023

Wasnt a fan when I received this filter the paint was flaking off and filter itself is made of a fibrous material sheds significantly. I didnt want those fiber ending up in my engine. It also does not include the pins to attach it.

Justin P Verified Purchase


October 13, 2021

Looks and is exactly like the factory made part. It seems like there should be a gasket to seal it better to the housing but I have not been able to easily find the number.

July 10, 2020

Aeronca Champ,as advertised

Mark W
August 19, 2018


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Regarding the Air Maze Filter 08-01542: Can it be cleaned and if so, can it be re-oiled??

Yes, the filter can be cleaned with solvent and re-oiled.

Q: Is there a preferred oil to use for re-oiling these Air Maze oil filters?

Use oil by dipping in Grade 1 or Grade 2 of MIL-L-21260. This will be stated on the instructions of the product.

Q: Does this new filter assembly (part # 08-01542) come with a gasket for the carb attachment?

No, this would not come with a gasket. This would come exactly as shown in the display picture.

Q: Can it be cleaned and oiled using the K&N filter care service kit 99-5050 (or more specifically oiled with the K&N oil)?

The vendor recommends a MIL-L-21260 oil, like LPS 2 or Marvel oil.

Q: Could you tell me the exact size of the filter?

6 x 5-1/2 x 1-1/2.

Q: Regarding to the size, I want the size of the box behind the front plate which measure 6 x 5 1/2 x 1 1/2? Thanks for your help.

5 x 4.5 x 1.25

Q: The filter says to soak in MIL-PRF-21260, what oil is this? Cant find where Marvel or LP2 meets this criteria in the previous answered question.

Per filter vendor: Just a light weight oil, similar to WD40 or LPS, or Marvel Mystery oil.
