Constructed of high density polyethylene, these blow molded multi-purpose tanks offer excellent durability and resistance to most chemical and fluids. Express service tanks come with a cap and straight fittings.
All tanks come with a 2-1/4" buttress thread cap, may require a bulkhead fitting depending on your installation. Please see the accessories section.
All sizes nominal. Height includes neck & fittings. Width includes mounting tabs. Max working temperature is 180-deg F and max working pressure is 5 PSI.

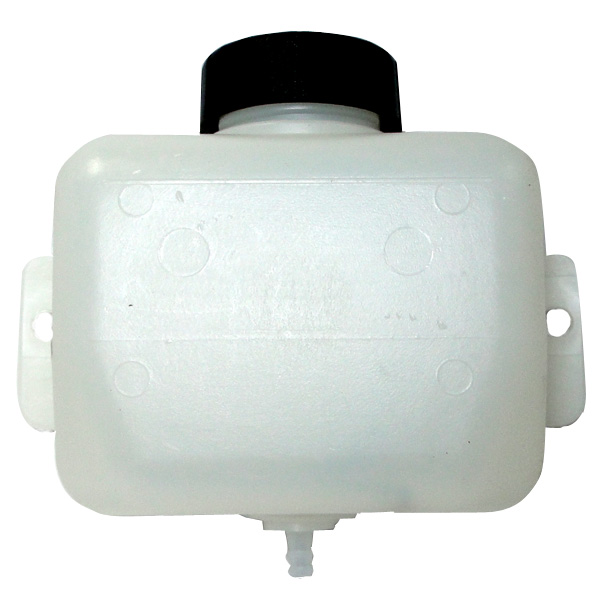

15-06828: 1 Quart 6.21" x 7.74" x 3.62" **Includes 1/4" barb spigot molded on bottom**
15-06830: 1.5 Quart 7.71" x 7.74" x 3.62"
15-06936: 2 Quart 7.04" x 8.632" x 4.173"

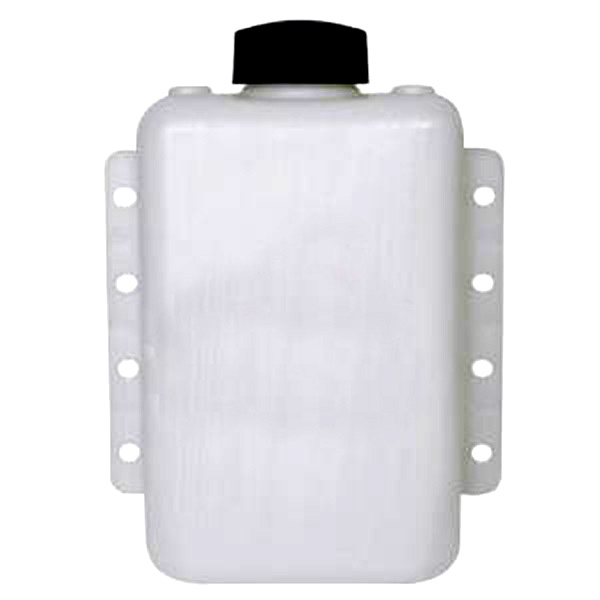

15-04841: 4 Quart 11.652" x 8.632" x 4.173"
Great quality, solid tank. I purchased the 1 quart size. no issues so far with leaking through the cap. Shipping was very fast.
Nice 1.5 quart tank. It appeared as though it would come with the outlet fitting, it did not.
nice bottle and cap but there is not an outlet on the bottom like the 1 Qt bottle showed in the picture
I bought two for my Rotax 582. One for the oil injection system and one for the coolant overflow. The gasket in the cap that I used for the oil swelled up almost immediately and stopped sealing. Any time the tank was more than half full the cap would leak oil with any amount of sloshing or vibration from the engine. The same thing is starting to happen with the tank Im using for coolant. (about 6 months of use so far) The tanks and caps themselves are fantastic, but it needs a different / better gasket material.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The dimensions are: 6.5" length x 5" depth x 4.5" height.
