Tanis Engine Preheat Kits - Pratt And Whitney

From $10000.00 to $10000.00
Aircraft Eligibility Kit Contains Description Part Number Price Buy
Pratt & Whitney DHC-8 (Q400)A complete aircraft system supplies 2838 watts with a 24.6 amp draw at 115 volts.
Each engine is supplied with 1315 watts with a 11.4 amp draw at 115 volts.
The 3 batteries are supplied with 208 watts with a 1.8 amp draw at 115 volts.
Fixed Wing Preheat System - DHC-8 Q400 PW150 - 115 Volt
05-14781
$10000.00
Quantity
Pratt & Whitney DHC-8 (Q400)A complete aircraft system supplies 2838 watts with a 12.3 amp draw at 230 volts.
Each engine is supplied with 1315 watts with a 5.7 amp draw at 230 volts.
The 3 batteries are supplied with 208 watts with a 0.9 amp draw at 230 volts.
Fixed Wing Preheat System - DHC-8 Q400 PW150 - 230 Volt
05-14782
$10000.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Fixed Wing Preheat System - DHC-8 Q400 PW150.

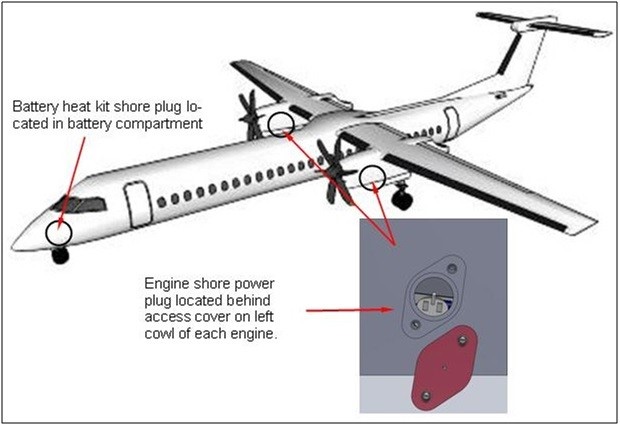

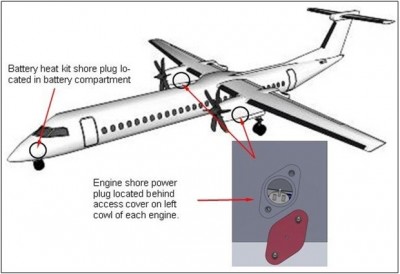

Full aircraft preheating is accomplished through electrical resistance heat in the form of thin pads and belts sized and shaped to fit various parts. The pads are surface mounted with a bonding sealant/adhesive. Belts are secured around the perimeter with cable ties. Heated items include, engine accessory/reduction gearboxes, fluids, batteries, and attached accessories. Power is routed to the heat elements through a dedicated wiring assembly with power indication and circuit overload protection. System is self-regulating through design. Heated components reach an average state of thermal equilibrium in approximately six hours.

This kit is not eligible for an 8130-3.
