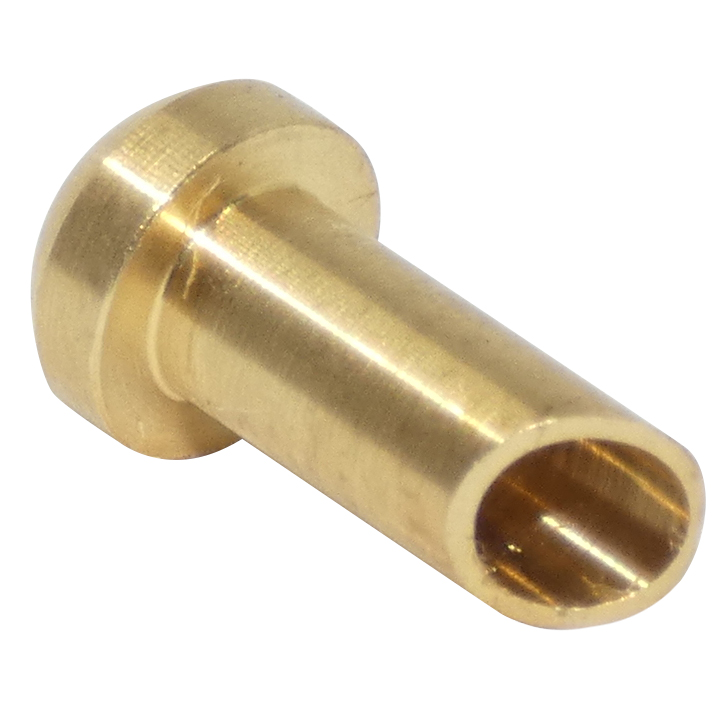

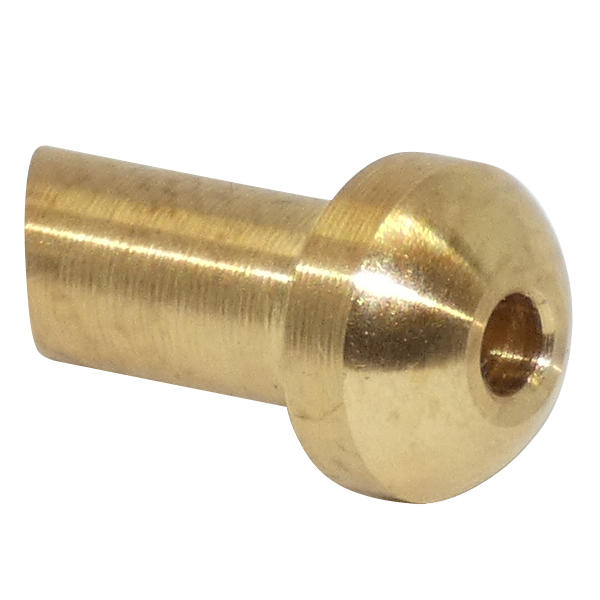

Union Cone AN800-2

$1.37/Piece
Part# AN800-2
MFR Model# AN800-2

Overview

AN Fittings. Union Cone.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Distance From Flanged End To Tubing Clearance Hole:0.156 inches
  • Flange Face Diameter:0.125 inches
  • Flange Inside Diameter:0.076 inches
  • Flange Outside Diameter:0.265 inches
  • Flange Width:0.125 inches
  • Hose/tube Outside Diameter For Which Designed:0.125 inches
  • Material:Copper alloy
  • Overall Length:0.500 inches
  • Seat Radius:0.141 inches
