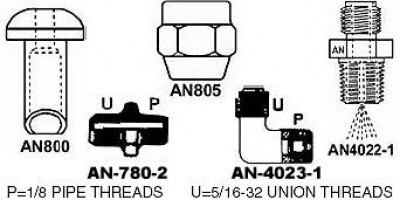

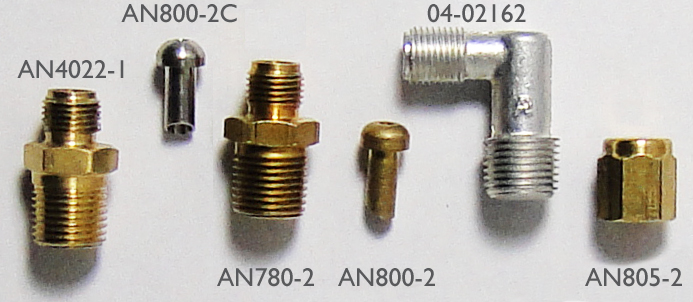

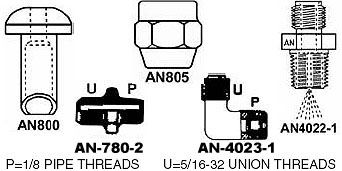

|1/8 x 5/16-32||BRASS PRIMER FITTING AN780-2|
|--||UNION CONE AN800-2|
|--||AN800-2C SS UNION CONE|
|5/16-32||BRASS UNION NUT AN805-2|
|1/8 x 5/16-32||DISCHARGE NIPPLE AN4022-1|
|1/8 x 5/16-32||NEW SURPLUS PRIMER "ELBOW" FITTING AN4023-1|
BRASS UNION NUT AN805-2
UNION CONE AN800-2
Great just what I needed
The AN 4022-1 is the final fitting that goes into the cylinder head that injects primer fuel into the intake port on a typical opposed carbureated aircraft engine. This fitting is fully machined with a precision fuel atomizer inserted into the machined body which explains the price difference between this item and a typical fitting.
Took me a while to find these actually existed. Should have called sooner. Thanks
This item has fine brass threads.(NPT) It is designed to be threaded into the intake manifold of my Continental engine. The threads needed cleaned before I could get it started. Not a big issue for me but someone may try to use a wrench and cross thread it. Suggest contacting the manufacture about this. This fitting is the fuel prime nozzle.
The (AN780-2 brass primer fitting)is not a primer fitting. AN780-2 is a 1/8 pipe thread to 1/8 cone fitting. Most commonly used in a primer system. This is a bad nomenclature description. AN4022-1 is a primer discharge nozzle or fitting.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
An800-2c is stainless and An800-2 is brass.
No it does not, it comes as pictured on the website.
