AN No. | Superseding NAS No. | Bolt or Screw Size |
O.D. (in.) |
I.D. (in.) |
Thickness | Price | Buy |
---|---|---|---|---|---|---|---|
AN960C4 | NAS1149CN432R | #4 | .312 | .125 | .032 | $0.03 | |
AN960C6 | NAS1149CN632R | #6 | .375 | .149 | .032 | $0.03 | |
AN960C8 | NAS1149CN832R | #8 | .375 | .174 | .032 | $0.03 | |
AN960C10 | NAS1149CO363R | 3/16 | .438 | .203 | .063 | $0.07 | |
AN960C416 | NAS1149CO463R | 1/4 | .500 | .265 | .063 | $0.08 | |
AN960C516 | NAS1149CO563R | 5/16 | .562 | .328 | .063 | $0.09 | |
AN960C616 | NAS1149CO663R | 3/8 | .625 | .390 | .063 | $0.18 | |
AN960C716 | NAS1149CO763R | 7/16 | .750 | .453 | .063 | $0.17 | |
AN960C816 | NAS1149CO863R | 1/2 | .875 | .515 | .063 | $0.22 | |
AN960C916 | NAS1149CO963R | 9/16 | 1.062 | .578 | .063 | $0.23 | |
AN960C1016 | NAS1149CO1063R | 5/8 | 1.188 | .640 | .063 | $1.05 | |
AN960C1216 | NAS1149CO1290R | 3/4 | 1.312 | .765 | .090 | $0.53 | |
AN960C4L | NAS1149CN416R | #4 | .312 | .125 | .016 | $0.03 | |
AN960C6L | NAS1149CN616R | #6 | .375 | .149 | .016 | $0.03 | |
AN960C8L | NAS1149CN816R | #8 | .375 | .174 | .016 | $0.03 | |
AN960C10L | NAS1149CO332R | 3/16 | .438 | .203 | .032 | $0.04 | |
AN960C416L | NAS1149CO432R | 1/4 | .500 | .265 | .032 | $0.04 | |
AN960C516L | NAS1149CO532R | 5/16 | .562 | .328 | .032 | $0.04 | |
AN960C616L | NAS1149CO632R | 3/8 | .625 | .390 | .032 | $0.10 | |
AN960C716L | NAS1149CO732R | 7/16 | .750 | .453 | .032 | $0.13 | |
AN960C816L | NAS1149CO832R | 1/2 | .875 | .515 | .032 | $0.11 | |
AN960C916L | NAS1149CO932R | 9/16 | 1.062 | .578 | .032 | $0.14 | |
AN960C1016L | NAS1149CO1032R | 5/8 | 1.188 | .640 | .032 | $0.25 |

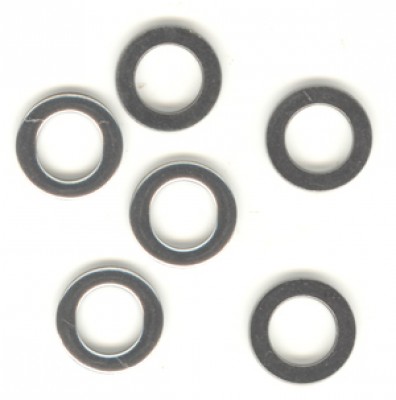

AN960 flat washers are used under hex nuts to provide a smooth bearing surface, as shims to obtain the correct grip length for a bolt and nut assembly, and to adjust the position of AN310 and AN320 castle nuts with respect to drilled cotter pin holes in bolts and clevis pins. Available in regular and light thickness. Light Series Washers: Add the letter "L" to dash number to indicate light series. AN960C-416L is a light series cadmium plated stainless steel washer for 1/4" dia. bolt. Light series washers must be manually input on order form. Less 20% for quantity 100/Part No. |
SS FLAT WASHER AN960C4
SS FLAT WASHER AN960C6
SS FLAT WASHER AN960C6L
SS FLAT WASHER AN960C8L
nice
SS FLAT WASHER AN960C10
Excellent products, excellent service! It’s why I do business here!
SS FLAT WASHER AN960C6L
Exactly what I ordered and received promptly.
AN960C516 SS WASHER
SS FLAT WASHER AN960C4L
Delivered as advertised
AN960C716 STAINLESS WASHER
I am not an aircraft builder. I work on antique and custom bikes. These washers are perfect ID /OD and thickness. Work beautifully.
AN960C616 SS WASHER
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
We have added a reference chart showing thickness, ID, and OD of the washers listed.
