ARP CARBURETOR ICE DETECTION SYSTEM

Select Mount:
Panel MountRemote MountUniversal Mount
Select Voltage:
12 Volt24 Volt
Quantity
Add to Wishlist

Overview

CARBURETOR ICE of the is one most dangerous as well as most common problems that pilots encounter because it can strike anyone just about anywhere during all phases of flight.

ARP CARBURETOR-ICE DETECTION SYSTEMS are made in USA and have been in service since 1967. In fact, ARP’s carburetor-ice detectors are the “Original” optical detectors on the market. They are available in three (3) different mounting configurations (Panel Mount, Remote Mount and Universal Mount) thus providing flexibility for any aircraft installation.

DETECTS FROST / ICE CRYSTAL (NOT TEMPERATURE) by placing an optical probe upstream in the most ice prone area of the carburetor air stream – the carburetor venturi. ARP carburetor-ice detectors detects actual frost / ice crystal formation well in advance before any problems can occur. This type of system is much more reliable than temperature indicators which cannot compensate for temperature / moisture ratios.

GIVES UP TO 5 MINUTES WARNING TIME by illuminating a RED visual ice warning light once ice formation occurs inside the carburetor thus providing the pilot sufficient time to apply carburetor heat before loss of engine performance.

HIGHLY RELIABLE with over 30 years of proven field performance.

LIGHT WEIGHT less than 13 ounces thus no impact on weight and balance.

SIMPLIFIED INSTALLATION keeps installation cost down – approximately 1 to 3 man-hours.

TWIN ENGINE APPLICATIONS are achieved by using individual ice detector systems for each engine.

SAVES FUEL by avoiding unnecessary use of carburetor heat.

WARRANTY 3-Years on Electronics Box and 1-Year on Probe.

FAA-STC SA489EA APPROVED for normal, utility and acrobatic airplanes and helicopters equipped with Continental, Franklin and Lycoming type engines and Precision Air-Motive (Facet or Marvel-Schebler) MA-2, MA-3, MA-3A, MA-3SPA, MA-4, MA-4-5, MA-4SPA, MA-5, MA-6, MA-6AA and HA-6 series carburetors. Installation on other aircraft not specified on the STC may be performed via FAA Form 337.

FAA-PMA APPROVED for installation on Type Certificated aircraft.

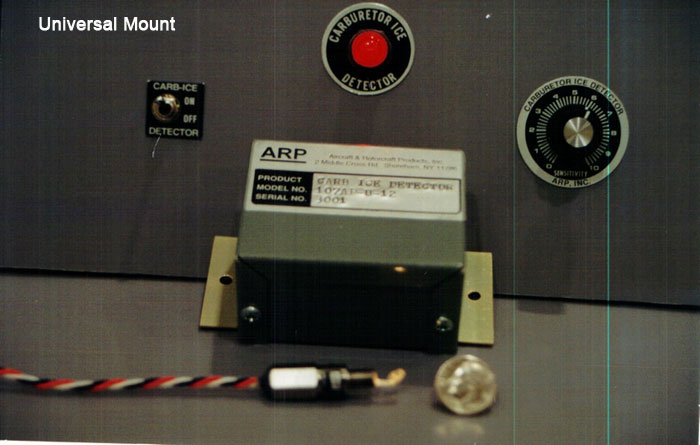

“UNIVERSAL” MOUNT CONFIGURATION

Installation: Mounts virtually anywhere. Designed for aircraft with tight or extremely limited space.
RED warning light, sensitivity adjustment control and on/off switch are detached from the electronics box with discrete wires for mounting in remote locations on the instrument panel or glare shield.

Instrument Dimensions:
• Mounting Plate: 3.75” x 1.62” x .050” Thick
• Enclosure: 2.75” x 2.12” x 1.62” High
• Remote Warning Light: 0.50” Mounting Diameter
• Sensitivity Adjustment Control: 0.375” Mounting Diameter
• On/Off Power Switch: 0.25” Mounting Diameter

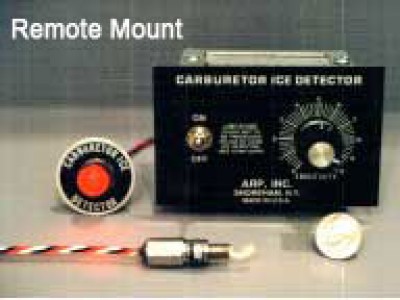

“REMOTE” MOUNT CONFIGURATION

Installation: Unit with remote RED warning light that’s Ideal for limited spaces and existing mounting holes. Red remote warning light mounts in ½” diameter hole on glare shield and instrument panel mounts in standard 3-1/8” instrument panel opening.

Instrument Dimensions:
• Face Plate: 3.50” x 3.50” x .032” Thick
• Enclosure: 2.75” x 2.12” x 1.62” High

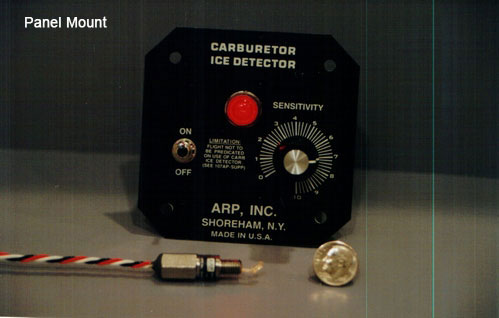

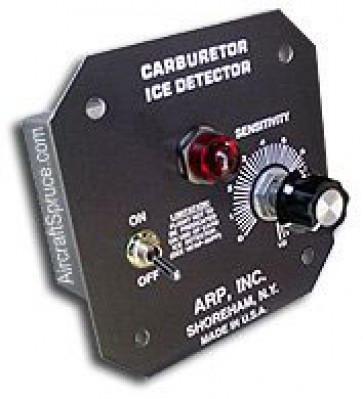

“PANEL” MOUNT CONFIGURATION
Installation: Self contained unit that mounts in standard 3-1/8” instrument panel opening.

Instrument Dimensions:
• Face Plate: 3.50” x 3.50” x .032” Thick
• Enclosure: 2.75” x 2.12” x 1.62” High


  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Simply put, if you own an aircraft with a carbureted engine this is MUST have equipment. And YES it works as advertised. You know immediately if you have anything forming in the carb, and with properly applied heat, its gone before the engine ever saw it. Cant believe this isnt standard equipment. I use on carbureted 182 and would never fly without it again.

Phil S
October 16, 2018

I’ve had one of these for 20 years in my Grumman Tiger .No false readings. Saved my bacon on a number of occasions including just recently skirting a thunderstorm returning to Michigan from California. Carb ice is very sneaky and this will detect it long before the engine runs rough or stops!

Joe B
June 12, 2018

I’ve been using it for half a year. I think this is the most important device for a carburetor engine.

Andrii P
May 25, 2018

Not enough stars for this device. It has warned me several times. But only using carb heat as needed saves engine wear as its unfiltered air going into engine while using carb heat

David J
December 3, 2017

I had one of these in a 172. This is really the only way to go if you fly a carbureted engine. There is absolutely no guesswork. You know when ice is starting to build in the venturi. Our Comanche has a temp. gage. That will be replaceded by this unit when it arrives.

Sam
November 17, 2017

I use this detector and it works great. My Cessna 150 gets carb ice and this device shows when it happens. I just pull carb heat until the lamp goes out. Yesterday I was over mountain and big trees and the lamp start showing. I took care of the building ice and my engine didn't miss a beat. I think having one is a safety tool for ice makers such as a Continental O-200 engine. -- Keep your wings level and fly right..

Darrell
January 21, 2014

I use one of these in my Cessna 180. Over 19 years, it's warned me only when there's been actual carb ice. I regard it as a must have for carbureted engines.

David P
February 24, 2013

Q&A

Q: Can the APR Carb Ice Detector unit be mounted from behind the instrument panel in a standard 3-1/8th hole?

Per the manufacturer: Yes, this unit can be mounted behind the panel in a standard 3-1/8 inch hole.

Q: Can the arp detector be used if carb is already equipped with a carb temp probe?

It is recommended to use the probe provided with this product. we have no data to support the use of other probes.

Q: Does this unit have an audio out connection so as the hear the alarm thru a headset in addition to the unit speaker?

This unit only gives you a visual warning with a red light.

Q: What current does this unit draw and what fuse is required? The installation manual does not have include this information.

Less than 1 amp draw and you would use a 1.5amp fuse.

Q: How long is the probe wire?

The probe has a 12 inch lead.
