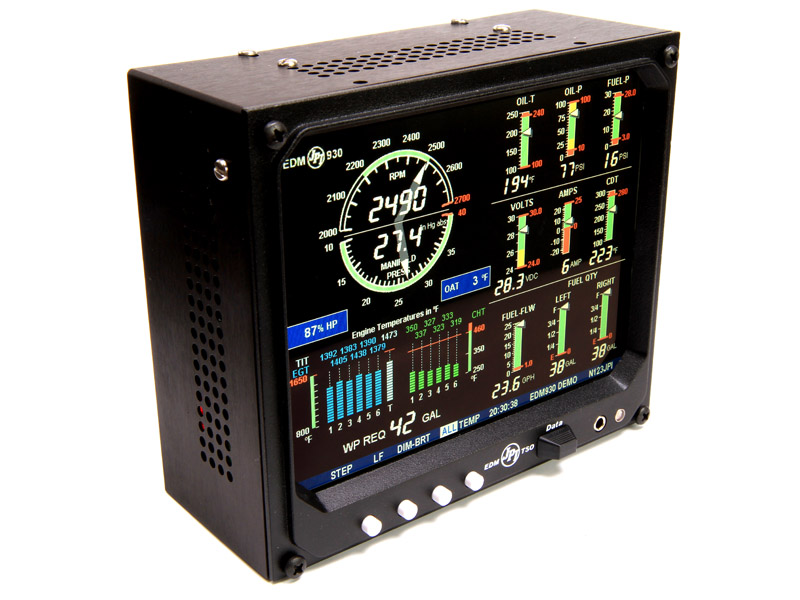

JPI EDM-930 Primary Experimental

0 Reviews 1 Answered Question
From $6015.00 to $7394.00
Main Image
Description PN Price Buy
EDM-930-4CP-0 (4 Cyl) for NO Tanks Experimental
10-05236
$6015.00
Quantity
EDM-930-4CP-2 (4 Cyl) for 2 Tanks Experimental
10-05237
$6261.00
Quantity
EDM-930-4CP-4 (4 Cyl) for 4 Tanks Experimental
10-05238
$6457.00
Quantity
EDM-930-6CP-0 (6 Cyl) for NO Tanks Experimental
10-05239
$6376.00
Quantity
EDM-930-6CP-2 (6 Cyl) for 2 Tanks Experimental
10-05240
$6625.00
Quantity
EDM-930-6CP-4 (6 Cyl) for 4 Tanks Experimental
10-05241
$6851.00
Quantity
EDM-930-7CP (7 Cyl) for 4 Tanks Experimental
10-05242
$6618.00
Quantity
EDM-930-8CP (8 Cyl) for 4 Tanks Experimental
10-05243
$6759.00
Quantity
EDM-930-9CP (9 Cyl) High Flow Transducer Experimental
10-05244
$7394.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

If necessary paperwork is NOT provided & ANY changes are required,
there WILL be a $200 fee: Required Order Form

Your EDM-930 will be monitoring your engine conditions four times per second and will warn you instantly if any measurement exceeds the programmed limit. Fly with confidence as your EDM930 acts as your on-board flight engineer.

Think of your EDM-930 Experimental as your personal flight engineer. Always there, working in the background, constantly watching over your engine while you concentrate on flying the aircraft. Your EDM-930 will be monitoring your engine conditions four times per second and will warn you instantly if any measurement exceeds the programmed limit.

Leaning is accomplished quickly and automatically using the LeanFind™ procedure. With the EDM it is now possible to have substantially more diagnostic information available to you in a timely and usable manner.

The EDM 930 collects data and displays it for you in a useful way. You can use the EDM 930 to monitor engine temperatures and voltages, adjust the fuel/air mixture, and diagnose engine malfunctions.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Hands-free, automatic scanning
  • All programming done from the Front Panel
  • LeanFind™ finds the first and last cylinder to peak with true
  • peak detect eliminates false peaks
  • Displays both leaned temperature below peak and peak
  • Battery voltage with alarm
  • Amperes (load or charge/discharge meter
  • Normalize view
  • Exhaust Gas Temperatures (EGTs) to stable 1°F resolution
  • DIF low to high EGT with alarm
  • EGTs to stable 1°F resolution
  • Shock cooling monitored on every cylinder
  • Shock cooling monitored on every cylinder
  • User selectable index rate
  • Fast response probes
  • •Non-volatile long term memory
  • Records and stores data up to 30 hours
  • Post-flight data retrieval
  • Download to Palm™ Computer
  • Data retrieval software
  • Oil pressure
  • Oil temperature
  • Outside air temperature
  • Fuel level
  • Fuel Flow
  • Solid-state rotor fuel flow transducer
  • Fuel quantity in gallons, kilograms, liters, or pounds
  • Low fuel quantity alarm
  • Low fuel time alarm
  • GPS interface
  • Instantaneous fuel flow rate
  • Total amount of fuel consumed
  • Total fuel remaining
  • Time to empty at the curent fuel flow rate
  • RPM and manifold pressure
  • Automatically calculates percent horsepower
  • History of extreme values during previous flight
  • Hobbs® timer
  • Hands-free, automatic scanning
  • All programming done from the Front Panel
  • LeanFind™ finds the first and last cylinder to peak with true
  • peak detect eliminates false peaks
  • Displays both leaned temperature below peak and peak
  • Battery voltage with alarm
  • Amperes (load or charge/discharge meter)
  • Programmable alarm limits
  • Normalize view
  • Exhaust Gas Temperatures (EGTs) to stable 1°F resolution
  • DIF low to high EGT with alarm
  • EGTs to stable 1°F resolution
  • Shock cooling monitored on every cylinder
  • Shock cooling monitored on every cylinder
  • User selectable index rate
  • Fast response probes
  • Non-volatile long term memory
  • Records and stores data up to 30 hours
  • Post-flight data retrieval
  • Download to Palm™ Computer
  • Data retrieval software
  • Oil pressure
  • Oil temperature
  • Outside air temperature
  • Fuel level
  • Fuel Flow
  • Solid-state rotor fuel flow transducer
  • Fuel quantity in gallons, kilograms, liters, or pounds
  • Low fuel quantity alarm
  • Low fuel time alarm
  • GPS interface
  • Instantaneous fuel flow rate
  • Total amount of fuel consumed
  • Total fuel remaining
  • Time to empty at the curent fuel flow rate
  • RPM and manifold pressure
  • Automatically calculates percent horsepower
  • History of extreme values during previous flight
  • Hobbs® timer
  • Fuel pressure
  • Carburetor temperature or induction temperature
  • Compressor discharge temperature option
  • Turbine inlet temperature

Documents

Videos

https://www.youtube.com/embed/0Ddso3r6_FQ
https://www.youtube.com/embed/UeoKFaG_3sc
https://www.youtube.com/embed/W4RTaGuKpqs

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce ®'s personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce ® assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this JPI EDM 930 come with all required probes and senders included?

Yes, JPI includes senders and wiring necessary for installation.
