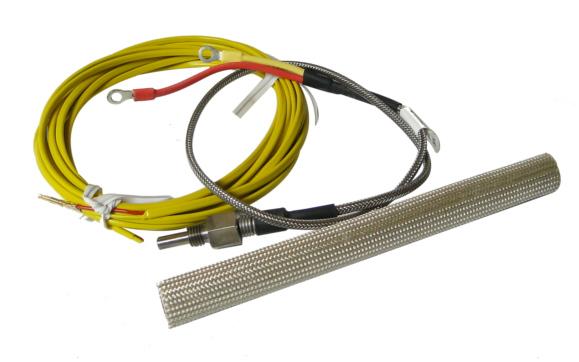

JPI Option EDM Carb Temp Probe

Add to Wishlist
Part# 10-27103
MFR Model# 1190


JPI option EDM carb temperature probe, 1/4-24 thread 400128.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -


Sensor was easy to install and no issues with the quality. I did have to do some digging on what the torque specifications were for the fitting into the carburetor that should of been included in the instruction sheet, thus the 4 star rating. There is a problem with the item description. The thread size is posted as a 1/4 - 24 and in reality it is a 1/4 - 28. The carburetor on my 182 is a Marvin - Schebler MA-4-5 and I confirmed this thread size with them. I also contacted JPI and the technician looked at his specifications and said that the sheet showed a 1/4 -24, but it had been scratched out with 1/4 - 28. I think it would be worth you time to contact JPI and get this straightened out. Who knows, you may be losing sales because of this error.

John S
November 23, 2020


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: The description of part # 10-27103 says that the probe is 1/4-24 thread. Is this correct? Can this probe be used on Marvel-Schebler carburators that have a 1/4-28 thread?

Yes, it is 1/4-24 thread and will work on the Marvel Schebler carbs you mentioned.

Q: Does the JPI EDM-700 automatically recognize the probe has been added and include it in the scan or is there any reprogramming required of the unit?

Per JPI, the EDM-700 will automatically recognize the probe when it is installed.

Q: Will this work with the JPI 830?

Yes, this will work with the EDM 830.

Q: Will this probe work on the EDM 350?

Please order 10-07081 for the EDM 350 option.

Q: Will this probe work with the EDM 900?

Yes, this is compatible with the EDM 900.
