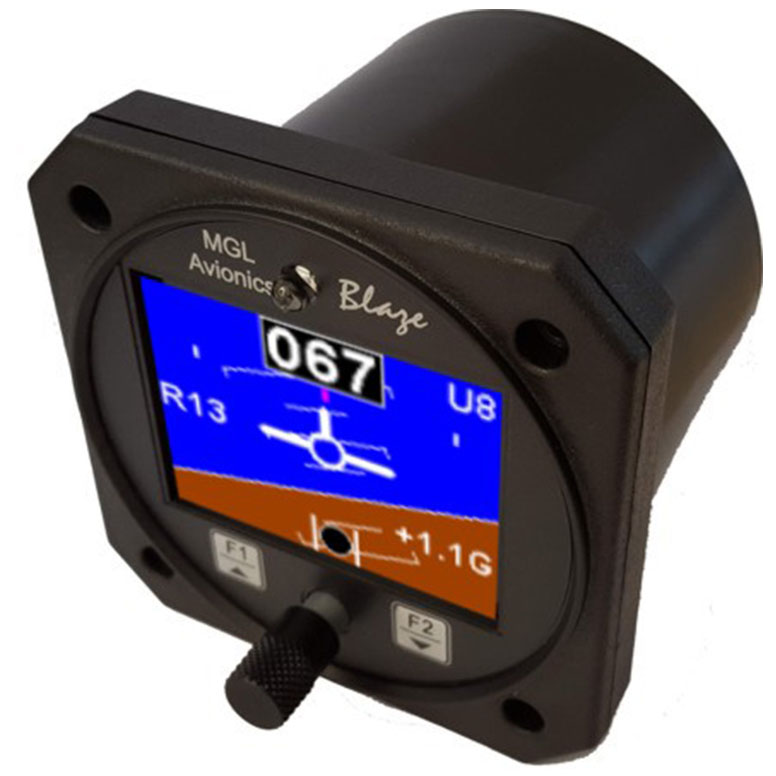

MGL Blaze AHRS-4 Attitude Indicator

$625.00/Each
Quantity
Add to Wishlist
Part# 11-20921
MFR Model# BLAZE-AHRS-4

Overview

The AHRS-4 is a 3 1/8” (80mm) sunlight readable color display instrument providing an artificial horizon from built-in inertial sensors.

The AHRS-4 does not require the MGL Avionics SP-7 sensor package in order to display the attitude, but does require the MGL-Avionics SP-6 compass sensor package to display heading.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

Power Specs Voltage Input: 8-30 Volts DC with Over Voltage and Reverse Polarity Protection
Current Draw (13.8V): 130mA Backlight High, 50mA Backlight Low
Screen Size: 2.6"
Resolution: 320×240
Backlight: minimum 600 cd/m2 brightness, sunlight readable LED backlight
Physical Specs Unit Size: 85mm x 85mm x 82mm
Fits in: 3 1/8" Instrument Cutout
Weight: 150 grams (excluding wiring)
Brand MGL Avionics
