MID-CONTINENT AIRSPEED INDICATOR 2 INCH

From $1767.00 to $1835.00
Model Number Description Part Number Price Buy
MD25-16020–160 knots, Lighted
10-04761
$1767.00
Quantity
MD25-20040–200 knots, Lighted
10-04763
$1767.00
Quantity

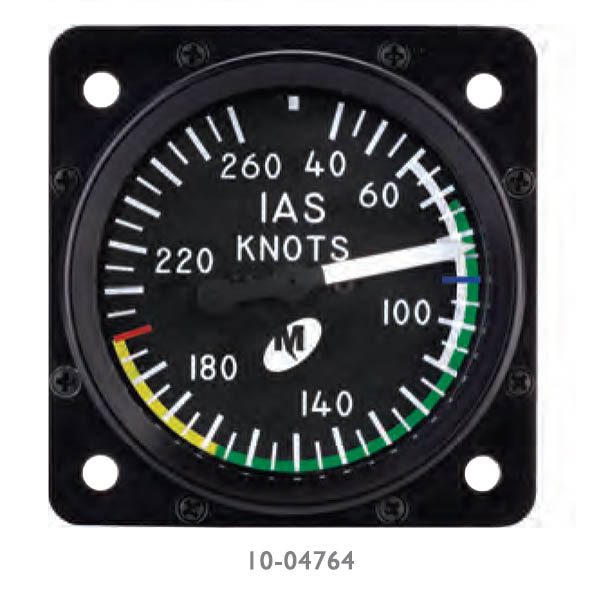

MD25-26040–260 knots, Lighted
10-04764
$1835.00
Quantity
MD25-30040–300 knots, Lighted
10-04765
$1767.00
Quantity
MD25-35040–350 knots, Lighted
10-04766
$1767.00
Quantity
MD25-40040–400 knots, Lighted
10-04767
$1767.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Lightweight and compact, this 2-inch indicator is ideal for a wide range of general and business aviation aircraft. It is used by OEMs as standard equipment and in many aftermarket programs. It is included in the Garmin G500/G600 AML STC.

Combine a 2-inch airspeed indicator with Mid-Continent’s 2-inch MD15 altimeter and 4200 attitude indicator for a complete standby package designed for tight panel applications.

Features

  • 160 - 400 knots configuration
  • Customizable range markings can be added to match aircraft operating handbook
  • Combine with a Mid-Continent MD15 Altimeter and 4200 Attitude Indicator for a complete standby package designed for tight panel applications
  • Approved to FAA TSO-C2d
  • Integral long life 5, 14 or 28 volt LED lighting
  • Anti-reflective glass enhances visibility and reduces pilot fatigue
  • Rear-mounted in standard 2 1/4” cutouts horizontally, vertically or individually
  • Designed and built in Wichita, Kansas, USA
  • One year limited warranty

Specifications

Certification
FAA TSO certified to C4c, C2d and C10b
RTCA DO-160F

Range Markings
Per customer specifications (optional)

Lighting
Field replaceable light tray available for 5, 14, & 28VDC input
with incandescent bulbs or white LEDs

Weight
0.6 lbs.

Dimensions
2.4 x 2.4 x 3.9 inches

Color
Case: Black

Mounting
Rear mount

Altitude
-15,000 to +50,000 feet

Operating Temperature
-20°C to +55°C

Connections
1/8-27 NPT per MIL-P-7105
