Rotax 914 Im-576 3 EGT 4 Reading 600-1800 :f Kit

Add to Wishlist
Part# 15-08623
MFR Model# IM-576 KIT

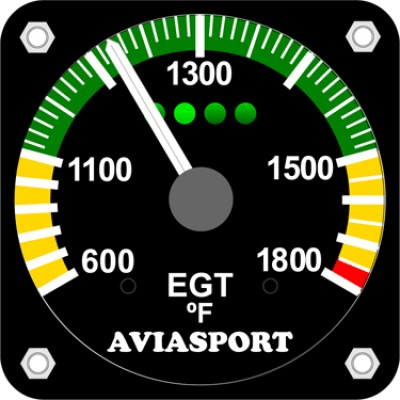

The IM-576 instruments have been designed especially to measure the EGT in Rotax« engines 914.
Includes the IM-580 EGT Connection Box.

The IM-576 is available in 57 mm diameter

Can be connected four probes. First shows the temperature of one. After of 3 seconds automatically show the other probe temperature, The four LEDs are used to show that probe is reading.

The instruments use a pointer thats turns 240║, witch gives them great resolution.

Their display areas are divided into red, green and yellow zones in line with the ROTAX limits.

Thanks to embedded operational amplifiers, this instrument has a high accuracy, but needs a power supply of 12V or 24V.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -


  • Case: Plastic
  • Weight: 200g
  • Suitable for: Rotax 914 With Type "K" sender
  • Power Supply: 10.30VDC
  • Power Current: 0.1 Amp. Max.
  • Scale: 600..1800 ║F
  • Subdivision scale: 10║F
  • Max. Deviation: 1%
  • Dimensions: See sketch
  • Calibration: Calibrated by the manufacturer prior to shipment.

In The Box

  • IM-576 EGT Gauge 80mm ║F
  • IM-580 EGT Connection Box
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items


Nice product

Eric G Verified Purchase

ROTAX 914 IM-576 3 EGT 4 READING 600-1800 F KIT

May 27, 2021


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What 8mm probe would you recommend for 15-08623?

We recommend using part # 10-01240.
