| Part Number | Range | Lighted | Price | Buy |
|---|---|---|---|---|
10-00190 | 40-200 mph/40-170 knots | No | $926.00 | |
10-00190-1 | 40-200 mph/40-170 knots | Yes | $1066.00 | |
10-00191 | 40-250 mph/40-200 knots | No | $925.00 | |
10-00191-1 | 40-250 mph/40-200 knots | Yes | $1066.00 | |
10-00192 | 40-300 mph/40-260 knots | No | $925.00 | |
10-00192-1 | 40-300 mph/40-260 knots | Yes | $1066.00 | |
10-00198 | 0-170 knots | No | $875.00 | |
10-00198-1 | 0-170 knots | Yes | $1038.00 | |
10-00201 | 0-260 knots | No | $867.00 | |
10-00201-1 | 40—260 Knots | Yes | $1038.00 |
Overview
|

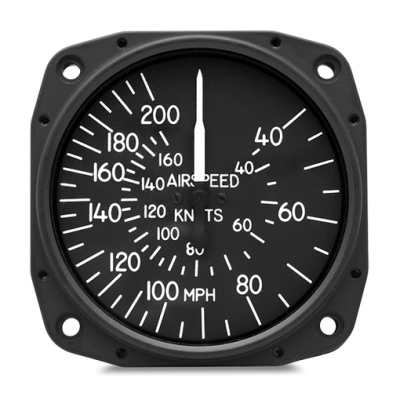

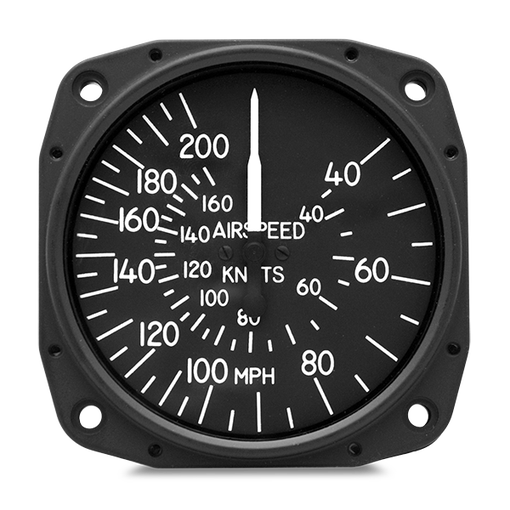

The 8000 Series Airspeed Indicator is intended for use on an aircraft to indicate the speed relative to the air at sea level and at any other altitude, to indicate the equivalent speed corresponding to the actual force of the air. When properly connected to an airspeed tube, mounted so as to be in undisturbed air, the airspeed indicator measures the differential pressure developed between the pitot and static opening. The pressure is indicated in units of airspeed (mph and/or knots). These 8000 series United airspeeds are TSO’d for installation on certificated aircraft. Factory new. Available in dual scale MPH/knots, or in MPH or knots only. Fits standard 3-1/8” panel hole. Wt: 0.7 lb. Available with custom range marks see "Options" tab. *NOTE* - All lit instruments require a light tray. Light tray sold separately. See accessories. |
Specifications
- Certification: FAA TSO C2b
- Case configuration: MS33638, 3inch
- Typical Weight: 0.7 pounds
- Static, Pitot Pressure Connector: 1/8 - 27 ANPT
- Installation: Removable spring nuts and #6-32 screws
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: How can I add specific range markings to the Mid-Cont airspeed indicator?
You can order part number 10-02614 with the gauge to add custom range markings.
Q: What are the instrument dimensions? How deep is it?
Thanks
This is 3 1/8" with a depth of 2.30".
