Universal Sender For Datcon Gauges

$69.80/Each
Quantity
Add to Wishlist
Part# 05-16710
MFR Model# 100438

Overview

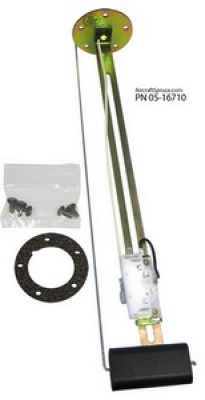

This Fuel Level Sender has removable mounting plate which can rotate 180 to mount on either right hand or left hand position. For tanks 6-15 deep.

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Reviews

This sender appears to be designed to work as a top mount, not a side mount. The float arm can be bent to work with a side mount, however it doesnt work well this way. The mount leaked I dont actually see any way it wouldnt leak based on design. I dont recommend this sender for a side mount where the fuel would ever reach the mount point.

Patrick C
December 21, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the resistance range?

Per manufacturer specifications: 240-33.5 ohms.

Q: Is this unit Datcon branded, or something different? Where is it made?

No, it is not Datcon branded.

Q: Is this sender, part no. 05-16710, to be mounted horizonal?

Yes, 05-16710 would be mounted horizontal in the tank.
