Gyro instruments are essential for instrument flight. Aircraft vacuum (or pressure) systems that power these instruments have a high failure rate, and can fail at any time leaving you without the use of these instruments. Tests have shown that gyro instruments can start giving false information within less than 1 min. after a complete vacuum loss. Without the means to instantly recognize this loss of vacuum a pilot may start to respond to a changing aircraft attitude that is incorrect without even knowing it. This can lead to conditions from which recovery is difficult or impossible.
Many aircraft are equipped with backup vacuum systems, however you must first know that your instrument power system has failed before any of these backup systems are engaged. You must "know you have a problem before you have a problem".

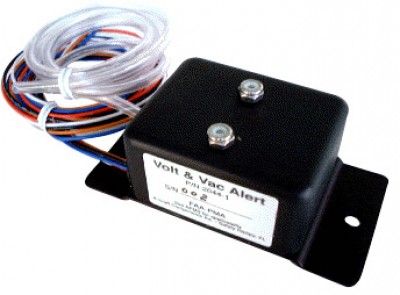

The P/N 2044 Volt & Vac Alert consists of a small electronic unit that can be mounted anywhere in the aircraft. It connects to aircraft voltage, instrument power (vacuum or pressure), and the aircraft audio system. A small red light is also mounted on the instrument panel within the pilots normal gyro scan. Should the gyro power fail, the pilot will hear the voice message "CHECK GYROS, CHECK GYROS" directly in his headset. The voice message will sound once, and then the red warning light will illuminate until the problem is fixed. The unit can be used in 12v or 24v aircraft with either vacuum or pressure gyro power systems. It can be installed in pressurized or un-pressurized aircraft.
The P/N 2044 Volt & Vac Alert is sold as a complete assembly with everything necessary for the installation except a 1 amp fuse or circuit breaker.
The system is approved for installation in most aircraft. Click on 2044AML to check out the listing of approved aircraft in the document section of this site. Click on 2044m to review the installation manual.
WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov
Used this for years. Mine finally died and Im ordering a replacement for my next annual. The instantaneous alert is a wonderful way to upgrade my instrument panel.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
There is only one red light on the dash. A verbal warning is provided through the headset to indicate the reason for the light being lit.
