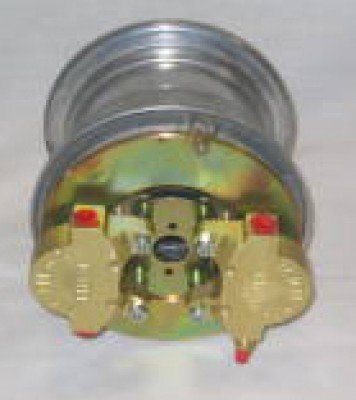

The W50CCD.75 is a 5 inch wheel with 4.38 inch width with an additional 1.75 inch caliper spacing. Bearing spacing is 3 inches and axle spacing is 1 inches. The total weight of this wheel and brake assembly is 5.35 pounds. The bearing axle diameter is 0.75 inches.
Performance The W50CCD.75 is designed for the following standards:
Static Capacity: 660 LBS
Load Limit: 2000 LBS
Maximum Accelerate/Stop Kinetic Energy: 93441 ft-lb
Torque Rating (@450 PSI): 3080 in-lb
Product Comparison Table
