Matco 6 Inch Wheel & Brake Assembly External Caliper

From $966.00 to $980.00
MATCO MFG Description Part No. Price / Pair Buy / Pair

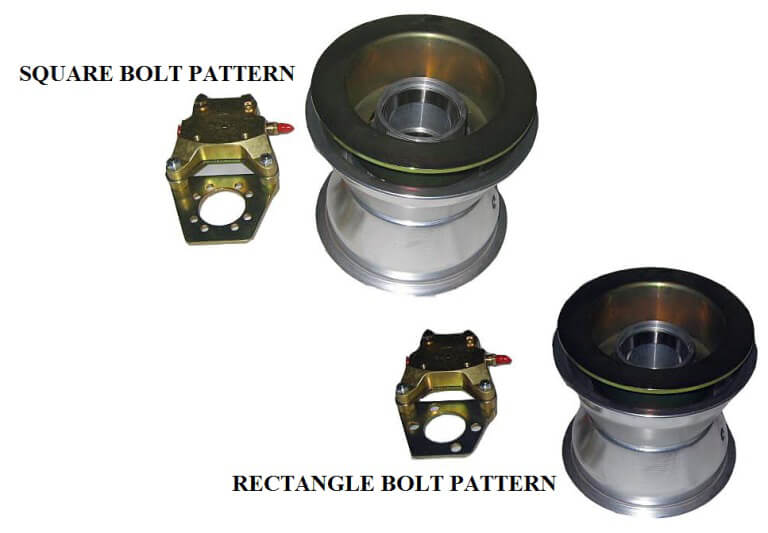

MHE6B1.256" Wheel & Brake Assembly
Square Bolt Pattern
06-00444
$980.00
Quantity
MHE6B1.25-SC 6" Wheel & Brake Assembly
Rectangle Bolt Pattern
06-00443
$966.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

MATCO mfg produces a superior 6 inch wheel and brake assembly for use with aircraft requiring less than 700 lbs per wheel. This model uses 1.25 inch TAPER/ROLL bearings.
(Check the product comparison table for other bearing and caliper configurations).

Dimensions

The MHE6B E SERIES is a 6 inch wheel with 6.22 inch width with an additional 1.31 inch caliper spacing.
Bearing spacing: 2.71 inches & axle spacing is 0.68 inches. The total weight of this wheel and brake assembly is 6.3 pounds.
The bearing axle diameter is 1.25 inches.

FEATURES

The MHE6B wheel utilizes CNC spun aluminum alloy wheel halves for superior strength, lightweight, and resistance to corrosion that is inherently found in magnesium wheels. The MHE6B wheel uses a 1.25 inch tapered roller bearing, designed and rigorously tested for long life and resistance to bearing fatigue. The 'E' series wheel features a single piston brake assembly with an external caliper for easy maintenance. Caliper removal is accomplished by removing two bolts giving easy access to the linings. Al-Ni-Brz bushings are used on 'E' series wheels to ensure smooth caliper travel. The CNC spun wheel halves offer a precision surface for use with a variety of commercial tires. The MHE6B can be fitted with the A3A (MHE6B-S) or A3C (MHE6B-SC) bolt on axle, offering easy installation. Both axles are made of black anodized 6061-T6 alloys

TIRE/TUBE

Precision machining on the MHE6B wheel allows for the use of a variety of tires to include
6" industrial tires.

Performance

The MHMHE6B1.25 is designed for the following standards:

Static Capacity 700 LBS
Load Limit 2100 LBS
Maximum Accelerate/Stop Kinetic Energy 118,000 ft-lb
Torque Rating (@450 PSI) 2085 in-lb

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

In stock and on time

Charles B
January 30, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these Matco CNC Spun Wheels sold individually or as a pair (set of 2)?

These are priced and sold as a set of 2.
