MATCO WHEEL AND BRAKE # W60

$584.00/Pair
Part# 06-02160
MFR Model# WHLW60

Overview

W60

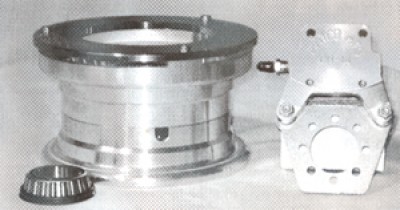

MATCO mfg produces a superior 6 inch wheel and brake assembly for use with aircraft requiring less than 1420 lbs per wheel. This model uses 1.25 inch TAPER/ROLL bearings. (Check the product comparison table for other bearing and caliper configurations).


Dimensions

The W60 is a 6 inch wheel with 4.375 inch width with an additional 1.23 inch caliper spacing. Bearing spacing is 2.5 inches and axle spacing is 1.25 inches. The total weight of this wheel and brake assembly is 7.1 pounds. The bearing axle diameter is 1.25 inches.


Performance The W60 is designed for the following standards:
Static Capacity: 1420 LBS
Load Limit: 4260 LBS
Maximum Accelerate/Stop Kinetic Energy: 189604 ft-lb
Torque Rating (@450 PSI): 1988 in-lb

Product Comparison Table
  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the wheel W60 need a tube with a 90 degree or straight valve stem?

The NW60 needs a tube with a 90 degree bent stem.

Q: What is the correct replacement brake lining for this brake?

WHLM66-106 is the correct lining.
