Matco Brake Fluid Reservoir

Select Version
Reservoir OnlyReservoir Kit
Quantity
Add to Wishlist

Overview

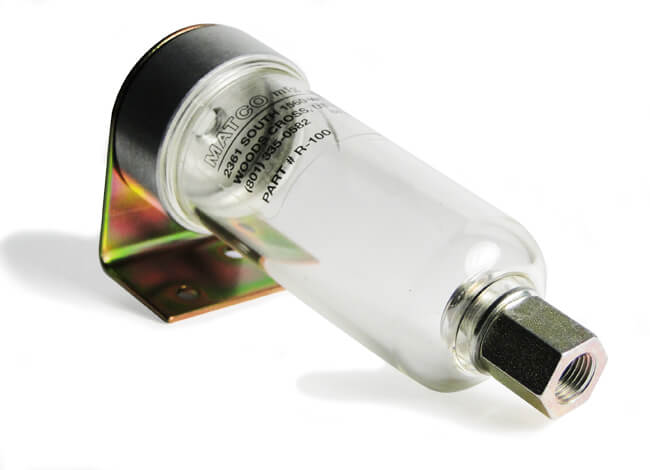

This brake fluid reservoir from Matco features a clear plastic bowl for easy inspection of reservoir fluid. Furnished with pre-drilled aluminum flange for easy mounting.Small and compact, this reservoir mounts almost anywhere.

Reservoir only
P/N 06-11225

Reservoir Kit
P/N 06-11230
(includes reservoir, tubing, and fittings for installation)

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Documents

Reviews

good quality fittings and easy to install

Richard S Verified Purchase

MATCO BRK FLUID RESERVOIR KIT

April 4, 2023

good quality

Ham K Verified Purchase

MATCO BRAKE FLUID RESERVOIR

May 22, 2021

Well made and fit for purpose. Suggest in future kit should include fire wall fitting.

Richard S Verified Purchase

MATCO BRK FLUID RESERVOIR KIT

February 19, 2023

Edward L
June 28, 2018

Looks nice, but not very serviceable. You cant open the top without disturbing the plumbing underneath. Extra hardware required to connect to brake lines.

Antonin G Verified Purchase

MATCO BRK FLUID RESERVOIR KIT

August 24, 2022

I purchased the reservoir and the reservoir kit. The reservoir that I received did not have a 1/8 NPT port as described but a 1/8 flare fitting and the kit came with a 1/8 NPT fitting that does not fit. The thread at the reservoir is BSPP, standard parallel pipe, the other end is UNF-2B not 1/8 NPT.

Ed
March 5, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this reservoir large enough to handle two master cylinders?

Per the manufacturer, yes this should be plenty large enough.

Q: What is the overall height of this Matco brake fluid reservoir?

The total length is approximately 4.5".

Q: Being plastic, can the Matco brake fluid reservoir be mounted on engine side of firewall?

Per the supplier: Yes. It is commonly mounted on the engine side of the firewall. However, it should not be in close proximity to a direct heat source.

Q: At the lower end of the reservoir, are the female NPT threads located on the side of the unit or on the bottom of the unit?

The female NPT threads would be located on the bottom of the unit.

Q: Can this reservoir be mounted directly on the Matco master cylinder, and what kind of fittings would that require?

Per Vendor: It should be mounted using the bracket. Some desire to mount it using only the fittings to support it and that is not desired means to secure it. It is also vulnerable to inadvertent contact in that location as well.

Q: Is this reservoir compatible with both, DOT 4 and mineral brake fluid?

This is made of polycarbonate material so it will not work with those fluids. This is made to work with H-5606 hydraulic fluid.

Q: Does the Matco brake fluid reservoir only option come exactly as the photo shows?

Yes, part # 06-11225 will come as shown in the photo.

Q: Is the reservoir kit for a single brake cylinder or for twin cylinders?

The 06-11230 kit comes with fittings for up to two master cyliinders.

Q: The Matco information states that the port on the base of the reservoir is female NPT but it is PPT. What fitting does it take? It does not fit the NPT fitting from the reservoir kit?

The base adapter fitting female side is 1/8 NPT as stated.

Q: Does this Matco brake fluid reservoir come with a vent plug? There is not one in the picture.

The cap has a vent hole in it. It is under the bracket with space provided by the washer separating the cap from the bracket.
