ACS Model A-600 Brake Reservoir

$25.95/Each
Quantity
Add to Wishlist
Part# 06-00391
MFR Model# A-600

Overview

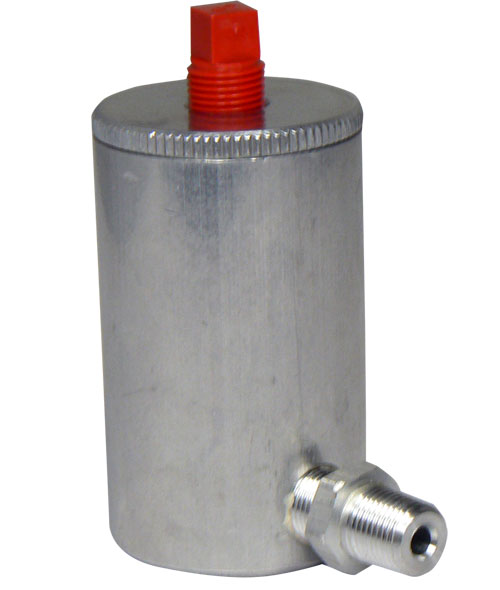

Machined from 6061T6 billet. Cap is threaded into body and sealed with a Viton o-ring for easy filling and cleaning. Cap and body have 1/8" female threads. 1-3/8" dia. x 2-3/8" high. Capacity 1.8 oz. Can be threaded directly into master cylinder port. Two units required on most installations (one per master cylinder). Supplied with vented plug in cap and 1/8" NPT male fitting in body.

Dimensions in PDF.


Made in USA
  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Used these on my RV-8 and loved them. Im now putting them in my under-construction Bearhawk 4pl. No mess, no fuss, no extra brake lines to a firewall mounted reservoir.

Mark R Verified Purchase

ACS BRAKE FLUID RESERVOIR A-600

November 16, 2021

Good reservoir. It does what is supposed to do with no problem.

Lewis M Verified Purchase

ACS BRAKE FLUID RESERVOIR A-600

September 24, 2021

this reservoir was exactly what I needed for a 1940 Willys pickup that Im working on. Im using it for a hydraulic clutch master cylinder in a limited acces location. Thanks for speedy service !!

Roger N
October 17, 2019

Beautiful little reservoir! Feels well constructed, made in USA, and since I have a tight spot... two of these little reservoirs will fit just right. The machine work on this reservoir is clean... there are no metal shavings, and the threads work correctly.

Andy
July 10, 2015

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do you stock a replacement O-Ring for this A-600 Reservoir?

Yes, we do carry the replacement o-ring. It is our part number 05-12730.

Q: I don't see a mounting bracket, is there one included with the A-600 reservoir?

This unit does not come with a bracket. If a bracket is needed, it will need to be fabricated by the builder.

Q: Is there a small hole in the cap for venting, I dont see that in mine?

The cap is not vented.
