Cleveland Wheels & Brakes Homebuilders Special

Quantity
Add to Wishlist

Overview

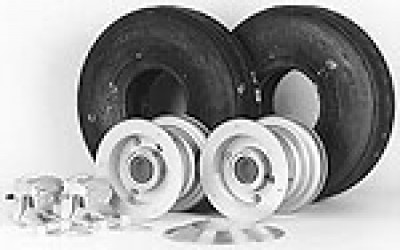

PACKAGE NO. 1 - Includes two Cleveland 5.00-5 magnesium wheels and brakes plus two 6 ply tires and tubes. (Wt. approx. 28 lbs.)
Pkg
Description
Part No.
A With McCreary Air Trac Tires & Tubes 06-00100
B With Goodyear Flight Custom II Tires (Goodyear's latest design) 06-00200
C With Lamb Tires & Tubes 06-00300
PACKAGE NO. 2 - Package No. 1 plus two Cleveland #10-35 master cylinders. (Wt. approx. 30 lbs.)
A With McCreary Air Trac Tires & Tubes 06-00400
B With Goodyear Flight Custom II Tires & Tubes 06-00500
C With Lamb Tires & Tubes 06-00600
PACKAGE NO. 3 - Includes two Cleveland 6.00-6 magnesium wheels and brakes plus two 4 ply tires and tubes. (Wt. approx. 32 lbs.)
A With McCreary Air Trac Tires & Tubes 06-00700
B With Goodyear Flight Custom II Tires & Tubes 06-00800
PACKAGE NO. 4 - Package No. 3 plus two Cleveland #10-35 master cylinders. (Wt. approx. 34 lbs.)
A With McCreary Air Trac Tires & Tubes 06-00900
B With Goodyear Flight Custom II Tires & Tubes 06-01000
PACKAGE NO. 5 - Includes two Cleveland 6.00-6 magnesium wheels and brakes plus two low-profile light-weight 6 ply 15x6.00-6 tires and tubes. (Wt. approx. 32 lbs.)
A With McCreary Air Trac Tires & Tubes 06-01100
B With Goodyear Flight Custom II Tires & Tubes 06-01200
PACKAGE NO. 6 - Package No. 5 plus two Cleveland #10-35 master cylinders. (Wt. approx. 34 lbs.)
A With McCreary Air Trac Tires & Tubes 06-01300
B With Goodyear Flight Custom II Tires & Tubes 06-01400
PACKAGE NO. 7 FOR DEFIANT - Includes two Cleveland 6.00-6 magnesium wheels and brakes (P/N 199-133X)
plus two 6.00-6 McCreary 6 ply tires and tubes plus two master cylinders. 06-01500

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: The PACKAGE NO. 7 FOR DEFIANT - Includes two master cylinders, please tell me what master cylinder is included?

This kit comes with 10-34 master cylinders.

Q: What are the part numbers of the components in the Cleveland wheels and brakes homebuilder's special package 1A?

PACKAGE NO. 1A - Includes two Cleveland 5.00-5 magnesium wheels and brakes plus two 6 ply Lamb tires & tubes. (Wt. approx. 28 lbs.) Part numbers included in the kit are: Qty 1 199-102 (CLEV WHEEL & BRAKE # 199-102) / Qty 2 06-07400 (TIRE 11x4.00-5 6 PLY)/ Qty 2 06-07600 (TUBE 11x4.00-5)
