Home / Landing Gear / Nose Wheels / Cleveland /Cleveland Nose Wheels 5.00-5
Main Image

Cleveland Nose Wheels 5.00-5

102 Reviews 2 Answered Questions
From $0.09 to $2659.00
Main Image

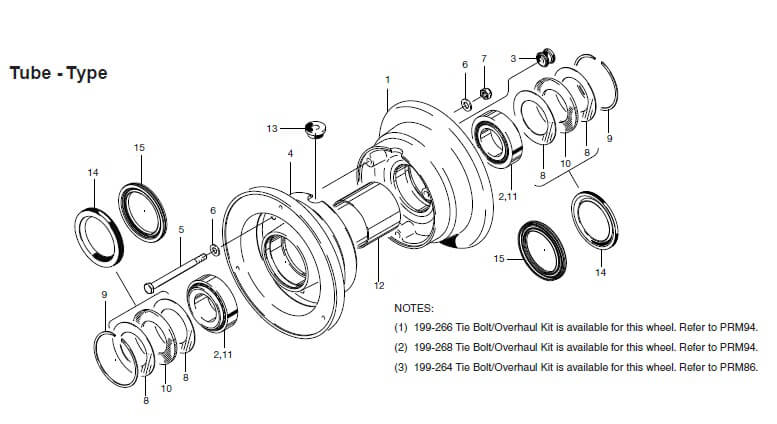

FIG Old Part
No.		 Part
No.		 Description 40-77 40-77A 40-77B 40-87 40-87C Price Buy
Note (3)
40-77
40-77
Nose Wheel Assembly----------$1465.00
Quantity
Note (1)40-77A
06-00367
Nose Wheel Assembly----------$1784.00
Quantity
Note (3)40-77B
05-11661
Nose Wheel Assembly----------$1837.00
Quantity
--40-87
040-08700
Nose Wheel Assembly----------$2659.00
Quantity
--40-87C
06-00962
Nose Wheel Assembly----------$2497.00
Quantity
1162-28
162-02800
Outer Wheel
Half Assy		11--1--$997.00
Quantity
1162-36
162-03600
Outer Wheel
Half Assy For the 40-87A or D Only		----------$1497.00
Quantity
1162-39
162-03900
Outer Wheel
Half Assy		--------1$2191.00
Quantity
3217-1
217-00100
Grommet11111$19.50
Quantity
4161-31
161-03100
Inner Wheel
Half Assy		11---1--$998.00
Quantity
4161-38
161-03800
Inner Wheel
Half Assy For the 40-87A or D Only		--------1$1736.00
Quantity
4161-41
161-04100
Inner Wheel
Half Assy		--------1$1931.00
Quantity
4161-55
161-05500
Inner Wheel
Half Assy		----1----$1328.00
Quantity
5103-10500
AN4-22A
Bolt33333$0.90
Quantity
6095-10400
AN960-416
Washer66666$0.09
Quantity
7094-10300
AN365-428A
Nut----------$0.19
Quantity
8153-1
05-12775
Ring-Grease
Seal		------44$68.95
Quantity
9155-2
155-00200
Ring-Snap22222$38.50
Quantity
921-104
153-00200
Ring-Grease
Seal		------4--$51.75
Quantity
1108125
214-00400
Cone-Bearing22222$187.75
Quantity
15154-13000
06-02819
Molded Grease
Seal for
40-77, 40-77A, 40-77B		222----$115.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Cleveland Tube Type 5.00-5 Nose Wheel Assembly

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Jeff S Verified Purchase

Washer, Flat AN960-416
March 19, 2025

I ordered these for my latest project because I wasnt sure exactly which length I needed. If I dont use them, thats O.K., because thats how you build a hardware collection.

Marty T Verified Purchase

Bolt Undrilled AN4-22A
March 11, 2025

Eddie L Verified Purchase

Washer, Flat AN960-416
December 24, 2024

Y

Aircraft I Verified Purchase

Washer, Flat AN960-416
December 8, 2024

I can always depend on Aircraft Spruce to not only have the hardware in stock, but to also have quality hardware.

Marty T Verified Purchase

MS21044N4 Elastic Stop Nut
December 3, 2024

Specialty B Verified Purchase

MS21044N4 Elastic Stop Nut
October 29, 2024

Tri-star C Verified Purchase

Washer, Flat AN960-416
September 21, 2024

Tri-star C Verified Purchase

MS21044N4 Elastic Stop Nut
September 21, 2024

Tony M Verified Purchase

Washer, Flat AN960-416
August 20, 2024

Michel C Verified Purchase

Washer, Flat AN960-416
August 15, 2024

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the Cleveland 40-77 wheel made of magnesium or aluminum alloy?

This 40-77 wheel is made of magnesium.

Q: Can you help to tell that 40-77 and 40-87 are same or different?

They are close but they do have some different grease seals and rings. The STC is probably also different.
