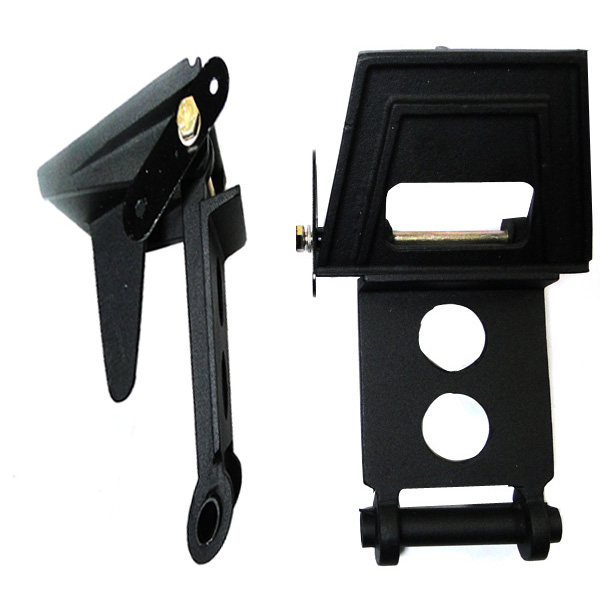

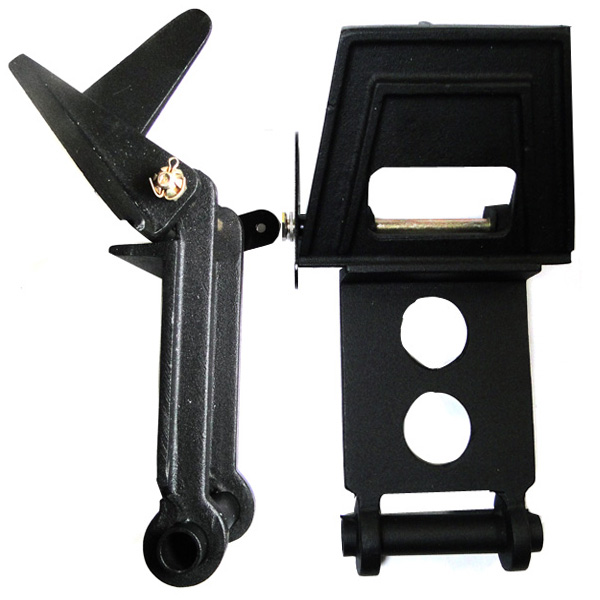

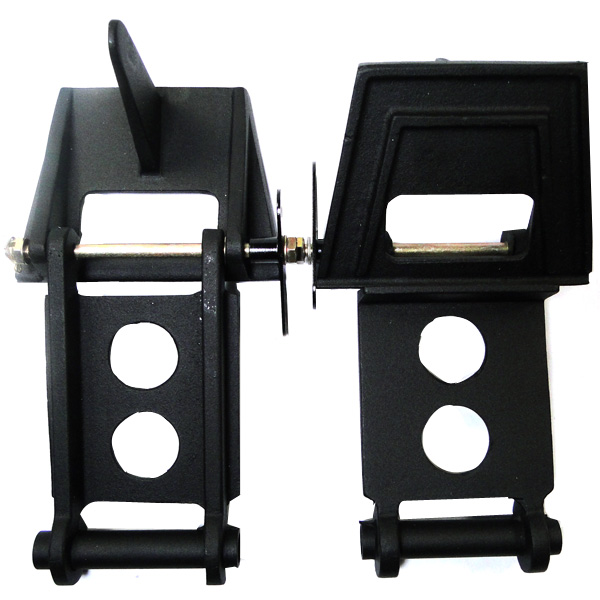

ACS Rudder Pedal / Toe Brake Assembly

$97.75/Pair
Quantity
Add to Wishlist
Part# 11350
MFR Model# 11350

Overview

For use with any standard master brake cylinders. Two-piece design. Completely finished, assembled, ready for installation. Wt. 2 lbs. each.
Made in USA

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Ordered before noon CST on Thursday and received them Saturday afternoon. Excellent service. Thanks

Donald B Verified Purchase

Rudder Pedal Toe Brake #11350

December 17, 2021

These will go into a Taylorcraft and preliminary trial fits indicate that they will work perfectly

David L Verified Purchase

Rudder Pedal Toe Brake #11350

December 12, 2021

I successfully adapted this pedal to my Zenith SD750. With slight modification, I attached the pedal to Zeniths 1/2 inch tubular steel rudder system. The Matco brake cylinder (push rod) needed to be extended using 5/16 x 24 threaded rod and coupler nut. End results, appearance and function, are very nice.

Kenneth C
December 3, 2020

Very professional looking rudder / toe brake pedals at a fair price. Was able to combine the two pedals with the Matco Mc-5 master cylinders to produce a first class finished product. Very Pleased.

Jay W
July 30, 2020

They may be great but there are no directions on installing. There is no reference material from the company who makes them. Basically you are on your own to guess how the lower end of the brake cylinder might be installed.

Terry B
December 1, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the price include two ACS rudder pedal / toe brake assemblies or one?

These are priced and sold as a pair.

Q: What are the ACS rudder pedals made of? Cast aluminum or pot metal?

These are made of cast aluminum.

Q: Could you send me all the dimensions of this ACS rudder pedal assembly?

Overall length of assembly: 9"
Width of Pedal: 4"
Length of Toe Pedal: 3-1/2"
Dimension from Toe/Heel hinge to floor mount: 5"
I.D. of floor mount tube: 1/2"
