Grove 600X6 Standard Axle

From $104.75 to $108.75
Description Part Number Price Buy
GROVE 600X6 STD AXLW 5016
06-00919
$104.75
Quantity
GROVE 1-1/2 AXLE W/WHEEL PANT STUB
06-00602
$108.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

The most popular axle for 600x6 wheels. Designed to fit 600x6 Grove and Cleveland wheels.

600x6 Standard Axle
PN 06-00919
* Diameter: 1-1/2"
* Material: Solid 2024-T3 aluminum with anodized finish
* Type 2 Axle Hole Pattern
* Axle Weight: 1.28 lbs.
* Static Load Rating 1,750 lbs.
* For use with Grove 60-1, 61-1 and Cleveland 600x6 wheels.

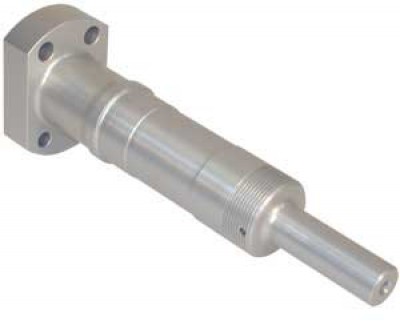

600x6 Standard Axle With Wheel Pant Stub
PN 06-00602
Axle has built-in wheel pant stub with 1/4-28 thread.
* Diameter: 1-1/2"
* Material: Solid 2024-T3 aluminum with anodized finish
* Type 2 Axle Hole Pattern
* Axle Weight: 1.43 lbs.
* Static Load Rating 1,750 lbs.
* For use with Grove 60-1, 61-1 and Cleveland 600x6 wheels.

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Regarding Part # 06-00919: Are these solid or hollow?

These axles are solid.

Q: Do I order 2 bolt kits if I ordered 2 axles?

Grove's bolt kits come as a pair. So if you ordered two axles, you will just need 1 bolt kit.

Q: What's the difference between the part # 06-00602 and 06-00919?

06-00602 has a built in 1/4-28 wheel pant stub.

Q: Are these axles certificated?

No, they require a field approval for installation on a certified aircraft.
