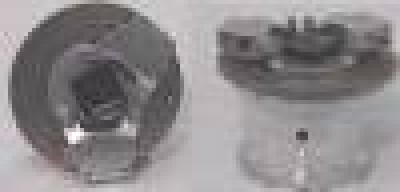

MATCO CENTRIFUGALLY CAST WHEELS INTERNAL CALIPER W51LD

$679.00/Pair
Part# 06-00464
MFR Model# WHLW51LD

Overview

W51LD
MATCO mfg produces a superior 5 inch wheel and brake assembly for use with aircraft requiring less than 1420 lbs per wheel. This model uses 1.25 inch TAPER/ROLL bearings. (Check the product comparison table for other bearing and caliper configurations).


Dimensions
The W51LD is a 5 inch wheel with 4.725 inch width with an additional 1.23 inch caliper spacing. Bearing spacing is 3.084 inches and axle spacing is 1.410 inches. The total weight of this wheel and brake assembly is 8.9 pounds. The bearing axle diameter is 1.25 inches.

Features
The W51LD is centrifugally cast utilizing 535 aluminum alloy for superior strength and corrosion resistance. This alloy provides a light weight wheel and affords many yars of efficient performance. The W51LD features dual WHLB5 brake assemblies and high energy disc for increased braking performance. The wheel is designed to use 5.00-5 aircraft style tires. (Specify the W50LD for use with 11x400x5 'Lamb' type tires). The WHLA1A axle or WHLAXLE1A axle assembly (includes axle, nut, and washer) are designed to be used with the W51LD.

Performance The W51LD is designed for the following standards:
Static Capacity: 1420 LBS
Load Limit: 4260 LBS
Maximum Accelerate/Stop Kinetic Energy: 283613 ft-lb
Torque Rating (@450 PSI): 3976 in-lb
