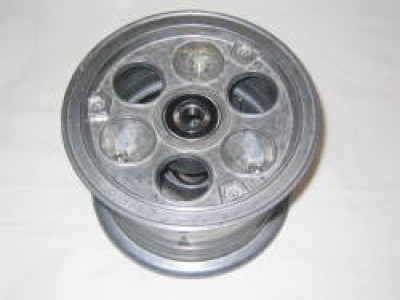

Matco Centrifugally Cast Aluminum Nosewheel Nw600Cc

From $141.75 to $215.95
Description Part Number Price Buy
MATCO NOSE WHEEL ASSY NW600CC
06-00560
$141.75
Quantity
MATCO NOSE WHL ASSY NW600CC.75
06-00561
$147.75
Quantity
MATCO NOSEWHL ASY NW600CC.75R
06-00562
$215.95
Quantity
Subtotal $0.00
Add to Wishlist

Overview

NW600CC
MATCO mfg produces the NW600CC inch nosewheel for use with aircraft requiring less than 660 pounds nosewheel load.

The NW600CC uses 0.625 inch Ball bearings, is 5.38 " wide and weighs approximately 3.47 lbs. The NW600CC.75 uses 0.75 inch Ball bearings, is 5.38" wide and weighs approximately 3.47 lbs. The NW600CC.75R uses 0.75 Taper/Roll bearings, is 5.38" wide and weighs approximately 3.52 lbs.

The NW600CC and NW600CC.75 are designed for the following standards:
Static Capacity: 660 LBS
Load Limit: 2000 LBS

The NW600CC.75R is designed for the following standards:
Static Capacity: 1185 LBS
Load Limit: 3560 LBS
