AN6287-1 Strut Valve

$33.85/Each
Quantity
Add to Wishlist
Part# 06-00395
MFR Model# 4361S

Overview

NOTE: Instructions available via PDF below. Not included in box with item. Please print and use as needed.

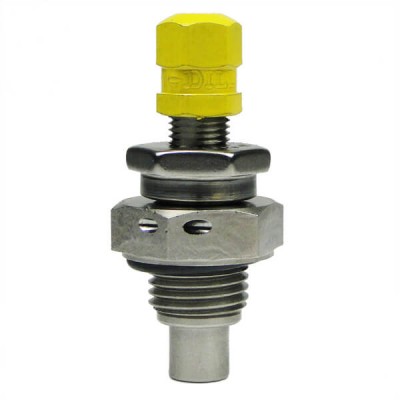

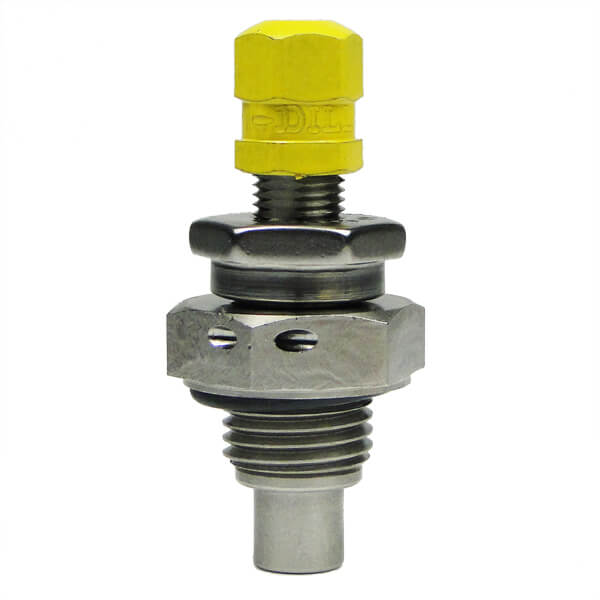

AN6287-1 strut valve for operating pressures up to 3000 PSI. Consists of a three-piece stainless steel body, high-pressure valve core and MS20813-1B cap.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Works exactly as original.

87 A Verified Purchase

AN6287-1 STRUT VALVE 4361S

February 8, 2024

Great price and availability!

Dewayne C Verified Purchase

AN6287-1 STRUT VALVE 4361S

December 15, 2023

High quality product, seals the nitrogen pressures and I do not have to rely on only the Schrader valve to seal. Once you understand how the valve works, it is easy. Release the locking, turn out by hand until it stops then wrench past the resistance to open. Plautus use this feature to service landing gear struts.

Sm S Verified Purchase

AN6287-1 STRUT VALVE 4361S

December 8, 2023

Right part, fair price. Don’t try to remove it from the strut by the 5/8 nut, the base nut is 3/4, and that’s the one if you are going to do fluid service. The 5/8 only needs small amount of CCW turn to allow your strut gas to pass via the depressable valve stem. If you need to release a little after overfill, only a crack open of the 5/8 and then a few quick fingernail stabs on the stem will do the trick if it’s under any weight load. Make sure rubber o-ring is there (comes with), and my Cessna 182L calls for AN901-5A gasket also. Parts Manual calls it an o-ring.

M.s. D Verified Purchase

AN6287-1 STRUT VALVE 4361S

December 5, 2023

Thumbs up

Tango L Verified Purchase

AN6287-1 STRUT VALVE 4361S

August 22, 2023

They work great

Burkett A Verified Purchase

AN6287-1 STRUT VALVE 4361S

July 20, 2023

Joe B Verified Purchase

AN6287-1 STRUT VALVE 4361S

July 3, 2023

Very Good Product

Wayne S Verified Purchase

AN6287-1 STRUT VALVE 4361S

March 11, 2023

Morandini A Verified Purchase

AN6287-1 STRUT VALVE 4361S

February 15, 2023

After new seals in the 182 strut, and still deflating, this valve solved the problem. Thanks.

Richard B Verified Purchase

AN6287-1 STRUT VALVE 4361S

January 31, 2023

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this a direct replacement on an a55 baron? an6287-1

We do not have the replacement parts list for each aircraft available. Please check your aircraft manual and parts list to verify correct replacement parts.

Q: What gasket should be used for the AN6287-1 strut valve (part # 06-00395)?

Use gasket AN6227B-4 for this strut valve. (See Accessories)

Q: Who is the manufacturer of the AN6287-1 strut valve? What are the dimensions? Do you know the thread sizes?

The manufacturer is AVALCO. The dimensions are 1.784" in length with a 3/4 wrench size. This will be the widest part of the unit. It will have a 1/2-20 thread size.

Q: Is this a substitute for an-812-1?

Per the supplier: No this is not a replacement for that part.

Q: Re AN6287-1 STRUT VALVE: What O ring is used between the valve and strut?

The manufacturer does not recommend replacing the o-ring, you would need to replace the whole unit.

Q: I need a strut valve for a cessna 172F, PN according to IPC is 0543036-1. Will this fit?

We do not see a cross reference from 0543036-1 to this part number. We could special order the 0543036-1. Please contact our sales team for pricing and lead time.

Q: What is the weight of AN6287-1 STRUT VALVE?

Approx 1.40 oz.
