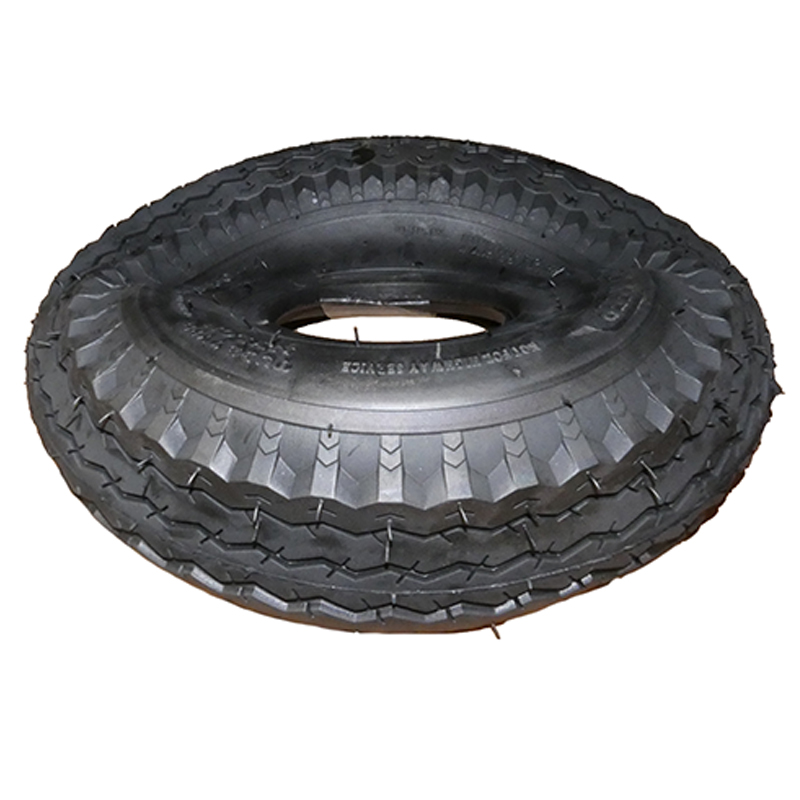

AZUSA TIRE 4.10/350 X 4 4 PLY

$17.50/Each
Part# 06-00772
MFR Model# 7036

Overview

Sawtooth Tires & tubes

Specifications

Tires
Tire Size
Ply
Width
O.D.
P/N
410/350 x 4 4 3.5" 10.5" 06-00772
410/350 x 5 4 3.5" 11.5" 06-00774
280/250 x 4 4 2.8" 8.8" 06-01287
340/300 x 5 4 3.5" 10.5" 06-01655
410/350 x 6 4 4.0" 12.5" 06-00074
480/800 x 8 4 4.6" 16" 06-01948
Tubes
Tube Size
Ply
Width
O.D.
P/N
410/350 x 443.5"10.5"06-00773
410/350 x 543.5"11.5"06-00775
280/250 x 442.8"8.8"06-01288
340/300 x 543.5"10.5"06-00822
410/350 x 644.0"12.5"06-00075
3.50/400 x 844.6"16.0"7121
340/300 x 543.5"10.5"7131

Reviews

Excellent product and appreciated FedEx overnight shipping.

Michael R
May 13, 2021

Mounted and ready to go. Weather permitting they will get a testing, but fit, and ease of installation exceeded my expectations.

Hugh R
December 1, 2020

Great value

Joe S
August 14, 2020

Nice tires they hold 80 PSI and roll my Bell 206 with ease (ground handling wheels)

Tony G
May 31, 2018

100% accuracy regarding description of item. Great shipping time and packaging.

Joe R
March 2, 2017

Nice little tire, but not very hardy. You get what you pay for..

Dan D
January 5, 2018

This tire lasted over 100 landings, so for a cheap $10 tire its been great for the money. The problem I found was when I found that it was a touch low on air pressure on the preflight of last flight I did, maybe 30 lbs instead of 50 lbs, and I mistakenly decided fly it any way. Mistake. Upon post flight inspection, there was a large bald spot on the shoulder of the tire. Hmmm, I like that this tire is light for weight and balance purposes, but Im not so sure Im going to run this tire any longer. Its a bit fragile.

Ben
November 18, 2017

NOT AIRWORTHY. Two different shipments. In each, tires were folded in upon themselves. Even when spread open after a couple of days they remained severely lopsided. ACS catalog list as Azuza Tire. Tires received indicated TON KEEP. Sidewall imprinted with Not For Highway Use. 4.10/350x5 4PLY. Shameful. Returned tires to ACS Will-Call Desk. Refund immediately provided by ACS. This is a product issue. ACS staff helpful. Complaint about ACS product sourcing and in-house product quality control in process with ACS.

Thomas K
September 29, 2020

When I opened the box the first thing I noticed is that it doesnt have the shape of a tire, it was flattened out. The rubber thickness is minimal and the core structure is wimpy. Hopefully it will take a normal shape when inflated. I doubt I will ever use it on my plane other than an emergency situation.

Phil
March 19, 2020

Total waiste of money. Crap. Will not put on my airplane. Not worth the postage it cost.

Jim
August 17, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the weights of tire # 06-00772 and tube # 06-00773?

Tire # 06-00772 (AZUSA TIRE 4.10/350 x 4 4 PLY) is approximately 2.1 lbs. Tube # 06-00773 (AZUSA TUBE #7130 410/350 X 4) is approximately 0.4 lbs.

Q: What is the load rating on the 3.5 x 4.1 x 6 4 ply rating tire, part # 06-00074?

The load rating is going to be 445 lbs.

Q: Are these tires and tubes certified? or are they just for experimental aircraft?

These tires are experimental as these do not fall under any certifications.

Q: What is the Max inflation for 06-00772?

50psi and 350lb max load.
