|Description||Valve Stem||Part Number|

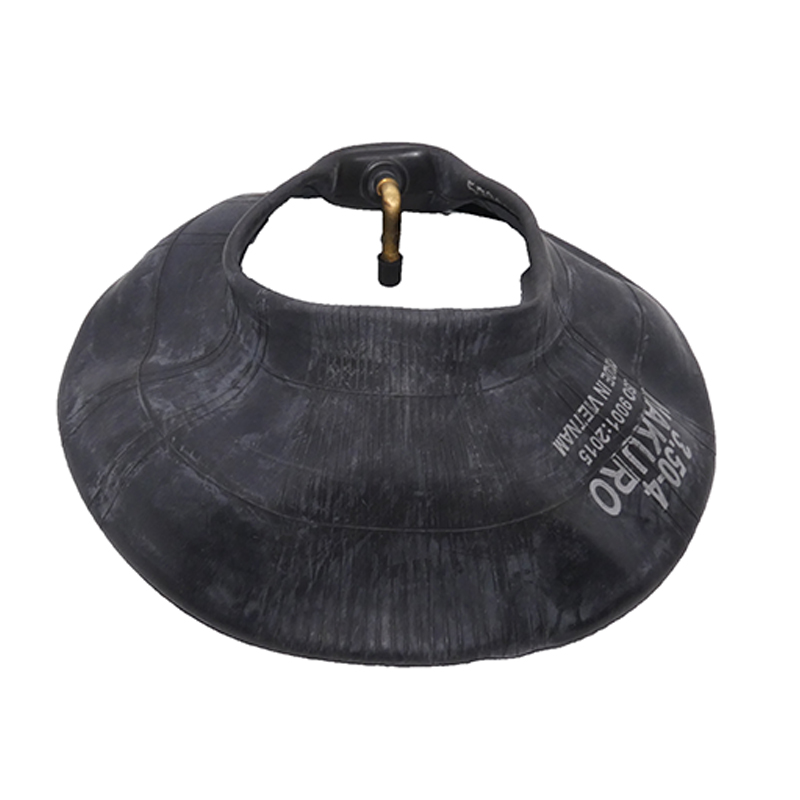

|Azusa Tube # 7130 410/350 X 4||90°||06-00773|
|Inner Tubes for most Azusa variety tires|
Excellent product and appreciated FedEx overnight shipping.
Mounted and ready to go. Weather permitting they will get a testing, but fit, and ease of installation exceeded my expectations.
These are a true 90 degree valve stem with the valve stem being very near the center of the tube. These tubes work very well for the Azusa 2 piece experimental wheels. The Azusa 2 piece wheel is a split wheel with the with valve stem placement in the middle of the wheel. Meaning that each half of the wheels has a 180 degree cutout for the tube valve stem. A true 90 degree valve stem is required for this application. The rubber thickness is near heavy duty on these tubes as well. Be careful as some tubes that claim they have a 90 degree stem are actually 45 degrees and the stem is offset further tpo the side of the tube.
Nice tires they hold 80 PSI and roll my Bell 206 with ease (ground handling wheels)
100% accuracy regarding description of item. Great shipping time and packaging.
Nice little tire, but not very hardy. You get what you pay for..
This tire lasted over 100 landings, so for a cheap $10 tire its been great for the money. The problem I found was when I found that it was a touch low on air pressure on the preflight of last flight I did, maybe 30 lbs instead of 50 lbs, and I mistakenly decided fly it any way. Mistake. Upon post flight inspection, there was a large bald spot on the shoulder of the tire. Hmmm, I like that this tire is light for weight and balance purposes, but Im not so sure Im going to run this tire any longer. Its a bit fragile.
Tube is of good quality, good 90 degree bend but valve is not on center. I also had to modify rim to make them work.
NOT AIRWORTHY. Two different shipments. In each, tires were folded in upon themselves. Even when spread open after a couple of days they remained severely lopsided. ACS catalog list as Azuza Tire. Tires received indicated TON KEEP. Sidewall imprinted with Not For Highway Use. 4.10/350x5 4PLY. Shameful. Returned tires to ACS Will-Call Desk. Refund immediately provided by ACS. This is a product issue. ACS staff helpful. Complaint about ACS product sourcing and in-house product quality control in process with ACS.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Tire # 06-00772 (AZUSA TIRE 4.10/350 x 4 4 PLY) is approximately 2.1 lbs. Tube # 06-00773 (AZUSA TUBE #7130 410/350 X 4) is approximately 0.4 lbs.
Yes, tube 7116 is equipped with a 90 degree bent valve stem.
06-00075 is a 90* stem. 06-01590 has a straight stem.
No, the tube 7121 has a straight valve stem.
No, this tube has a 90 degree valve stem.
The load rating is going to be 445 lbs.
These tires are experimental as these do not fall under any certifications.
From the 90 degree bend to the cap, the stem is approx 1-7/16 inches.
We have no data supporting this tubes being used for nitrogen.
50psi and 350lb max load.
