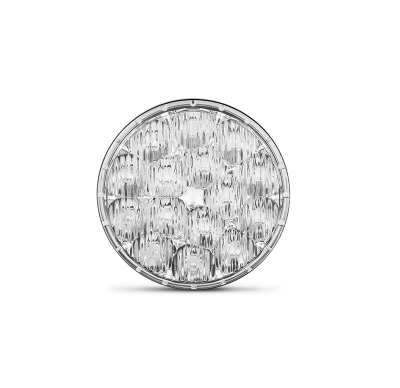

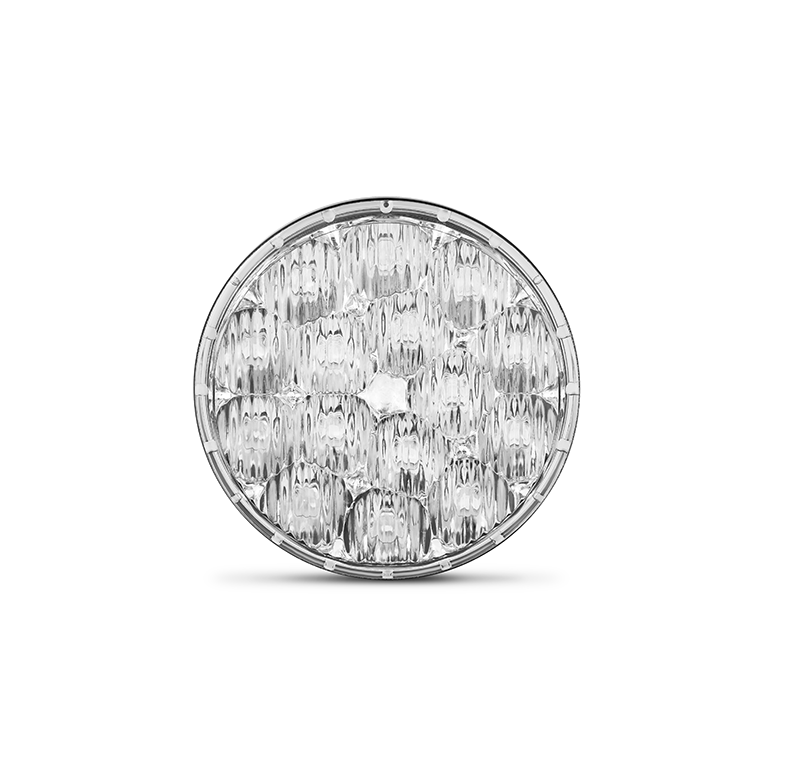

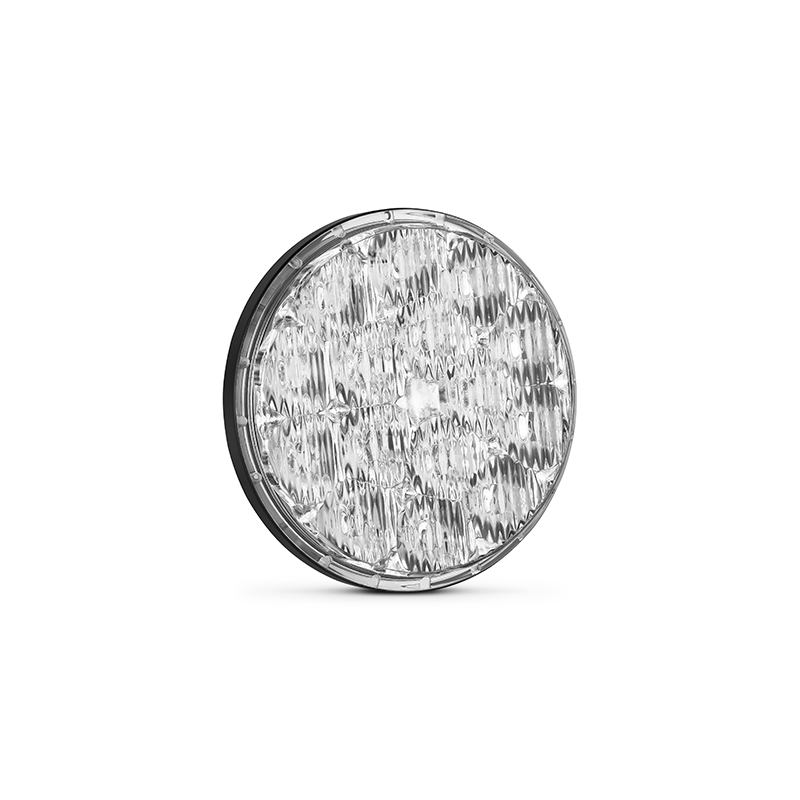

AeroLEDs Sunspot 36-4314 Hx Taxi Light With Pulse FAA PMA 14V

5 Reviews 2 Answered Questions
$775.00/Each
Add to cart for current price
Quantity
Add to Wishlist
Part# 11-17131
MFR Model# 01-1030-4314-H

Overview

AeroLEDs SunSpot 36 100W delivers exceptional performance for both landing and taxi operations:
  • Landing Light: 200,000+ candela, 20°x20° beam, visible up to 30 miles for outstanding recognition in the air.
  • Taxi Light: 60,000 candela, 20°vertical x40° horizontal beam for superior ground visibility.

    These advanced LED lights offer true-to-life illumination with exceptional color rendering, consume less power, and are resistant to vibrations. Designed for convenience, installation is seamless with the standard PAR36 mount and existing electrical connections.

    -H Model Features:
    • Built-in Pulse (wig-wag) mode for enhanced safety, aiding collision avoidance and reducing bird strikes.
    • Self-contained Pulse controller requires no external circuitry. Reduces electrical load by 50% in multi-light setup

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Power consumption:
  • 100 watts max
  • Color temperature – aviation white
  • Built-in pulse mode (-H models)
  • Synchronization (-H models)
  • Easy installation
  • 30k hr MTBF
  • Built-in thermal protection
  • Aluminum/black powder coated heat sink
  • UV hardcoated polycarbonate lens

Specifications

SPECIFICATIONS
Certification FAA-PMA / STC
Voltage Nominal 14VDC
Minimum 9VDC
Maximum 15VDC
Current 6.8A @ 14VDC
Power 95W
Lumens 11,000
Candela 200,000
Beam Profile (@10% peak) 20° Vertical x 20° Horizontal
Dimensions (L x W x D) 4.4" x 4.4" x 2.1"
Weight 11.5oz
Mounting PAR36

Documents

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Fantastic light very bright

Christian R
May 24, 2021

Easy replacement, much brighter than standard PAR36 light. Really lights up the runway! I wish I had upgraded sooner.

Chris C
December 18, 2020

This light is well made and should last a very very long time. It is surprisingly light in weight but very solid. Unfortunately I needed a PAR 46 and this is a PAR 36 so I had to return it. Cant wait to get my correct lamp!

John C
September 23, 2020

These things are awesome! Used this in-place of a 100 watt GE4509

Brian T
August 12, 2020

Simple straight forward installation on our Piper 140 D and provides a massive amount more light than stock. Not even on the same scale. I highly recommend this light.

Mark S
December 15, 2019

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Hi will the Aero Led par 36 pn 107-01-1030-4313 fit into my PA 28 Archer 1 aircraft many thanks

Yes, the PA 28 uses a PAR 36 style lamp. Please confirm aircraft voltage as this item is a 14V unit.

Q: Can LX model be pulsed? My aircraft already has a pulse circuit installed.

Yes, you can install the SunSpot on your aircraft and utilize the existing pulse box already installed.
