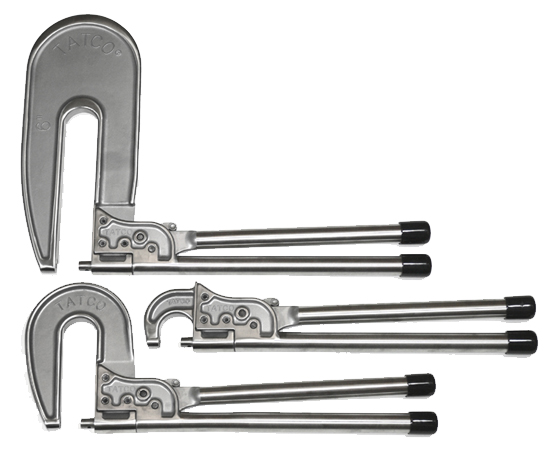

|HAND RIVET SQUEEZER THS-25||1-1/4" Gap x 2-1/2" Reach||12-03677|
|This tool was designed and built as a portable low cost solution for both small and large aerospace applications. It is made of aerospace grade stainless steel and heat treated on all wear and deflecting components to 38/42 on the Rockwell Hardness Scale. A large variety of interchangeable yokes are available with ranges from as small as 1.00" to 6.00" reach. It has proven itself over the years as a portable rugged solution, for light to medium duty, rivet squeezing applications.|
I got the 3 reach (THS-30) and while it works great, gets everywhere I need it to, sometimes the jaws need a gentle nudge to retract back open. I suspect its just a very low-tolerance tool and will loosen up a little with time, but that was a minor annoyance for me. Also worth mentioning, it does not come with any yokes (hard points for the jaws) so you will need to buy those separately. Not a complaint at all, just something to note.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No manual, just a yoke replacement procedure. If you butterfly the handles you can adjust rivet set holder up or down. You can also squeeze handles and rotate set holder with 1/8" rod using side hole on set holder.
