Material | Description | Max Panel Thickness | Part Number |
---|---|---|---|

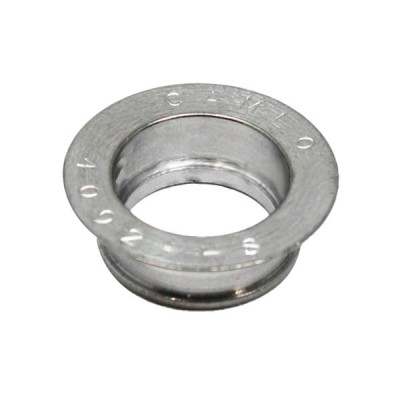

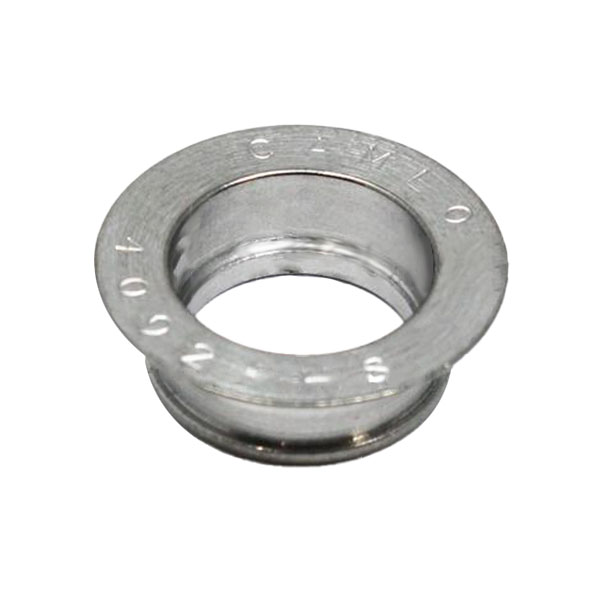

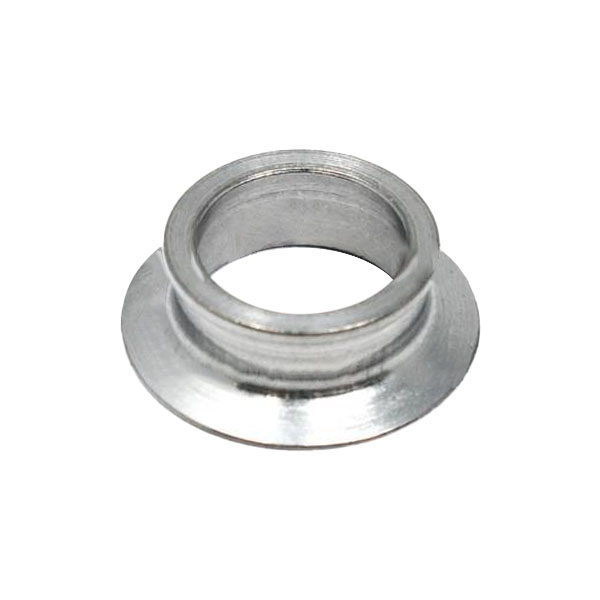

Stainless | Flush Grommet | .117 | 4002-HS |
4002 Series Grommets and Snap Rings |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Knowledge of the sales staff was very helpful .
Did the job, but there should be some sort of direction on how to get the flush ring over the prongs of the Camloc. If you have never attempted it, or have seen it done, a simple diagram or written instruction would be very helpful.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
A flush grommet requires the material be slightly dimpled, or countersunk, so the top of the grommet sits flush with the material. Plus flush does not require a dimple, or countersink, and sits on the material and is slightly rounded. The O.D. of the wide area grommet is .876", and the others are .625" O.D..
It is just the panel thickness itself.
The snap ring does not come with the grommet.
No, the snap ring will need to be ordered separately.
These are priced and sold individually.
Max panel thickness is .072.
