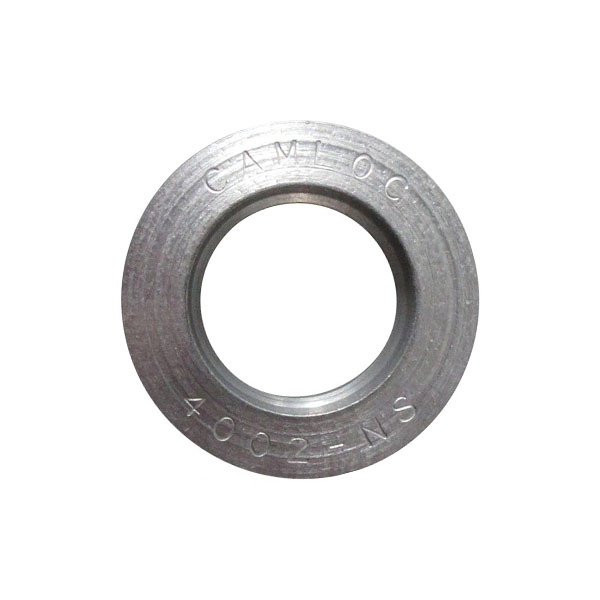

4002-Ns Stainless Steel Camloc Grommet

$6.50/Piece
Part# 4002-NS
MaterialDescriptionMax Panel
Thickness
Part Number
StainlessPlus Flush Grommet.0654002-NS

Overview

4002 Series
Grommets and Snap Rings

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Knowledge of the sales staff was very helpful .

Dale R
July 7, 2020

Rocket A
November 24, 2017

Did the job, but there should be some sort of direction on how to get the flush ring over the prongs of the Camloc. If you have never attempted it, or have seen it done, a simple diagram or written instruction would be very helpful.

Richard E
August 9, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the differences between the flush grommet & the plus flush grommet & the wide area grommet?

A flush grommet requires the material be slightly dimpled, or countersunk, so the top of the grommet sits flush with the material. Plus flush does not require a dimple, or countersink, and sits on the material and is slightly rounded. The O.D. of the wide area grommet is .876", and the others are .625" O.D..

Q: When the grid says max panel thickness, is that including the washer and ring? Or just the panel itself? (ie. fiberglass cowling)

It is just the panel thickness itself.

Q: Does the 4002 grommet come with snap ring?

The snap ring does not come with the grommet.

Q: Does the 4002-GS and 4002-NS grommets come with the snap ring?

No, the snap ring will need to be ordered separately.

Q: Is the price per snap ring, or per pack?

These are priced and sold individually.

Q: Can you confirm max panel thickness for 4002-N3 grommet is .072 and not .128 as shown?

Max panel thickness is .072.
