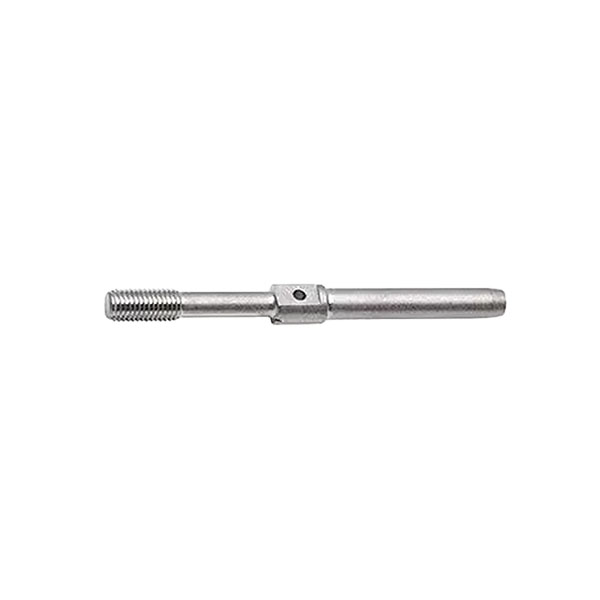

CABLE SWAGE END MS21260-S5LH

$10.50/Each
Part# MS21260-S5LH
MFR Model# MS21260-S5LH
Turnbuckle
Component
(Supercedes
AN669)
Cable
Dia.
Thread
Size
Length ± .063Min.
Breaking
Strength
(lbs.)
Part No.
Cable
Swage End
5/321/4-283.4392800MS21260-S5LH

Overview


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Always satisfied with service and hardware. Good people 😊

Robert M
March 31, 2021

Good

Saudi W
March 30, 2021

Work great!

George D
March 22, 2021

Happy with the parts.

Eric S
January 21, 2021

These clips are the excellent came packaged well and do the trick, better than safety wiring especially in tight places. G.

George K
November 30, 2020

Worked great on 1/8 cable

Don
July 30, 2020

Mechanic is very pleased with parts. I am very pleased with service.

William K
July 10, 2020

Fast shipping and good items~~

Yongho K
May 14, 2020

Great product but make sure you order the left and right ends.

Corey H
May 3, 2020

Perfect! Clean and ready to be installed. No problems at all.

Daniel F
April 19, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do you provide cable swaging services?

Yes, we do offer custom made cable assemblies. Please click here for more information.

Click Here

Q: I am ordering 6 turnbuckle barrels P/N: MS 21251-B5S. My questions are:<br> 1 - Does this barrel take the clips? <br> 2 - If it does take the clips - Which clips, since you have 2 part numbers listed?

Yes, the MS21251-B5S uses the clips. The S at the end of the part number indicates it is a short barrel, so you would need the MS21256-1 clips.

Q: what is the diameter of the shank? The area immediately behind the threaded section?? On the 6-40 size.

The measures out to .091".

Q: Are these MS21252 fork ends supplied with a type of locking pin?

No. These are the fork only. No other hardware is included.

Q: Can you give me the dimensions of MS21252-4LS fork pin dia? fork inside dia? fork outside dia? Things like that. Thank you!

The hole diameter for the pin is .190". The fork inside diameter is .195" and the fork outside diameter is .383".

Q: Clip MS21256 - no dimensions given. What is difference between -2 and -3?

The -2 is 2" long and the -3 is 2.25".

Q: The turnbuckle component lists has a fork end MS21252-4LS listed but no 4RS. Do you carry the RS?

Yes, use part # AN161-22RS.

Q: what is the lengths of the MS21251-B5S and B5L Barrels?

B5S is 2.2" | B5L is 4"
