HangarBot Industrial Door Sensor

Add to Wishlist
Part# 11-19083
MFR Model# HB-S-PR-2201


Why do I need this?
Whether youíre expecting a mechanic to stop by your hangar or youíre looking for another way to safely secure your property, your HangarBot Industrial Door Sensor will alert you in real-time whenever your hangar door is open or closed. Get notifications right to your smartphone with the HangarBot Mobile App!

This device is an industrial-grade sensor; meaning itís tough and wonít be damaged under the pressure of heavy equipment. Pair it with any HangarBot Hub of your choice for complete remote control.

How is Hangarbot different?
Designed by a pilot for pilots. With HangarBotís Industrial Door Sensor, you can now manage and monitor your flying experience in ways not previously possible with 1 simple app.

Equipped with a magnetic contact for roll-up, overhead and hangar doors, this sensor can be safely mounted on the ground or wall. For pilots that want a way to open and close the hangar door from anywhere in the world, pair this sensor with the HangarBot Door Controller.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

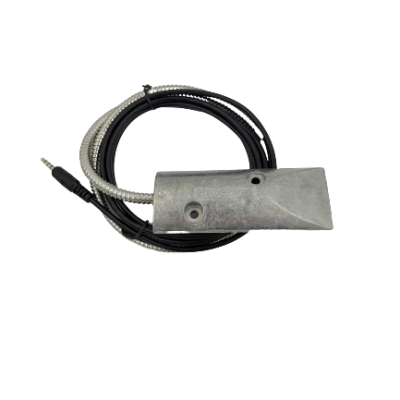

  • It comes with an adjustable magnet with an L bracket and a 24Ē armored cable.
  • Supply Voltage: 3.3VDC to 28VDC, 100mA max
  • Detection Type: Magnetic Reed Switch
  • Switch Type: Form A (SPST) Reed
  • Dimensions: (W x D x H) 1.75" x 4.25" x .5"
  • Magnet bracket: 2" x 2" x 4"
  • Cable Length: 8' cable


  • Pick a base station: HangarBot 4G Hub (I donít have Wi-Fi in my hangar) or HangarBot Hardwire Hub (I have Wi-Fi in my hangar)
  • Smartphone running iOS 9 or higher or Android 4.1 or higher
  • FREE HangarBot Mobile App (Latest version)
  • Cellular Data Plan or pre-existing Wi-Fi connection
