No. | Rotax Part Number | Description | Qty Req | PN | Price | Buy |
---|---|---|---|---|---|---|
2 | 850-930 | O-RING 16x5 | 8 | 15-01485 | $5.75 | |
5 | 840-141 | STUD M8x186 | 8 | 15-01101 | $6.40 | |
6 | 842-476 | COLLAR CAP NUT M8 | 8 | 15-09881 | $23.47 | |
7 | 942-302 | COLLAR NUT M8 | 8 | 15-09938 | $10.95 | |
11 | 854-101 | INTAKE VALVE 38 MM | 4 | 15-09186 | $151.50 | |
13 | 926-210 | SHIM 16/27.9/1 | 8 | 15-02975 | $2.30 | |
16 | 854-186 | VALVE SPRING RETAINER | 8 | 15-01652 | $16.85 | |
17 | 253-092 | VALVE COTTER | 16 | 15-08731 | $2.32 | |
18 | 854-861 | VALVE PUSH-ROD ASSEMBLY | 8 | 15-01677 | $140.45 | |
19 | 854-383 | ROCKER ARM LEFT | 4 | 15-01669 | $266.75 | |
20 | 854-393 | ROCKER ARM RIGHT | 4 | 15-01673 | $266.75 | |
21 | 933-396 | BUSHING | 8 | 15-03096 | $35.60 | |
25 | 245-440 | RETAINING RING A12 | 8 | 15-00236 | $0.35 | |
31 | 927-941 | WASHER 6.0 / 12 / 1 | 4 | 15-02997 | $0.43 | |
33 | 431-570 | O-RING 10.82x1.78 | 8 | 15-00539 | $0.42 |

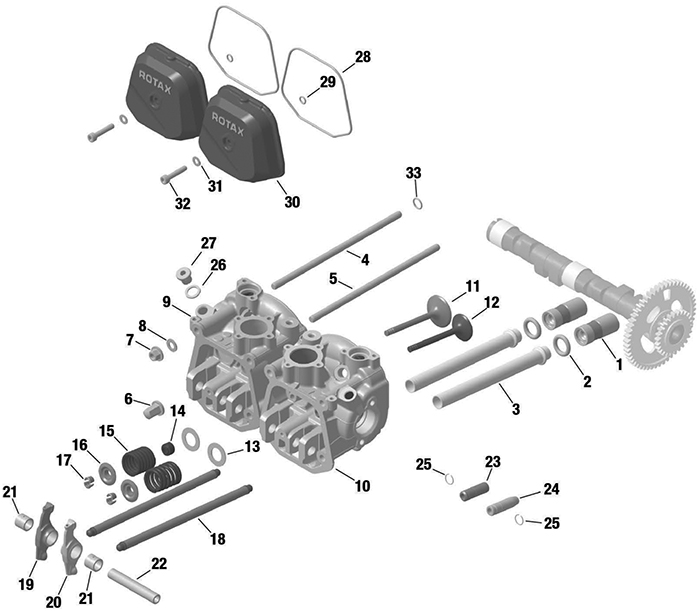

Rotax 915iS Camshaft, Valve Train, Cylinder Head and Valve Cover. Explanations of symbols and statements in part number charts:
![]() |
No. | Status | Part No. | Description | 912iS | 912iS Sport | Price |
7 | 842-476 | COLLAR CAP NUT M8 / TORQUE: 10 NM +180° / 90 IN.LB +180° | 8 | 8 | * | |
18 | 854-862 | VALVE PUSH-ROD ASSEMBLY | 8 | 8 | * | |
23 | 854-225 | VALVE GUIDE | 4 | 4 | * |
