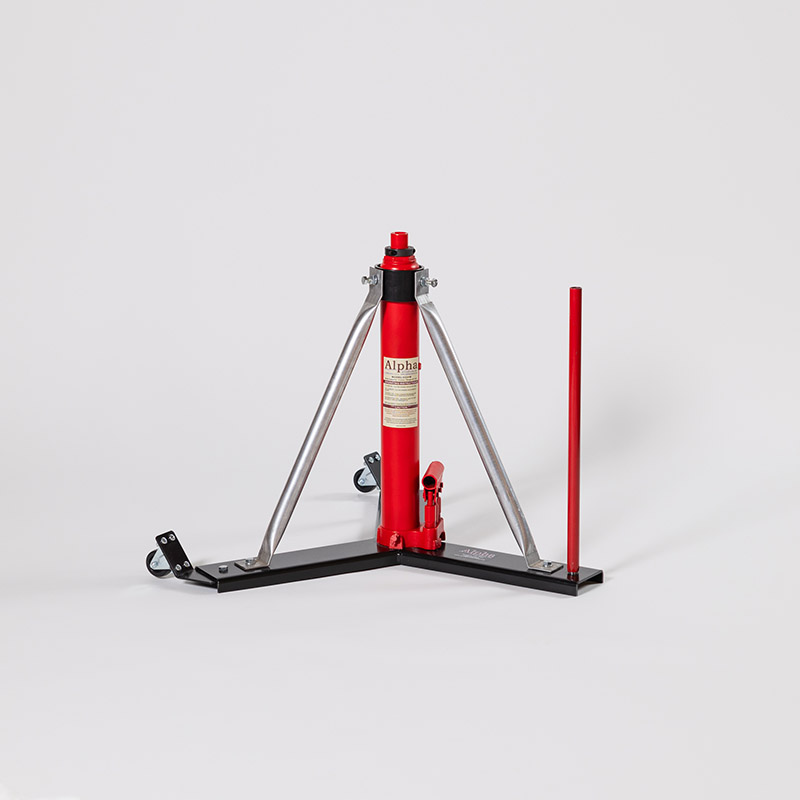

Hydraulic Aircraft Jack Model 324
MFR Model# 324W AIRCRAFT JACK
- JUMP TO
- Overview
- Accessories
- Reviews
- Q&A
- View in Catalog
Overview
|
Model #324 3 Ton Low Wing Jack 24" x 40" Eliminates the frustration of having unstable jacks that conflict with landing gear components and gear doors adjacent to your jack point. These jacks are especially appreciated by owners of Bonanza, Mooney, Comanche, & Twin Comanche Aircraft for the manner in which they may be positioned clear of the inner gear door hinge. Model #324 provides an easy slide under fit on aircraft with lower jack points. Application Chart
Ram Capacity: 6000lbs |
Reviews
I agree with Andrew. Mine have served me well, but when they start leaking/failing in the cylinder, I don’t trust them. That’s when I replace them. Still, I’m getting about six years service out of them, so it could be worse.
When they work they work great. I like the design, clears Baron gear well. Unfortunately, out of the 4 jacks weve had (Two 326 cylinder jacks and two of these 324 cylinder jacks), 3 of the cylinders have had leaks and were removed from service by our GSE shop.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the supplier: Total weight is approx 60 lbs with bases.
This will be shipped in 2 boxes. The weights and dimensions are as follows:
CYLYNDER KIT: 29 LB BOX / 25 X 5 X 5
BASES: 29 LB BOX / 29X4X25
These are priced and sold per single jack.
Thank you for your feedback. This information will help future customers.
It has a locking friction collar.
1.25 inches.
For that model we actually recommend the 326W model.
Regarding jack points the tops of our jacks are concave, and should accept pretty much any jack point.
