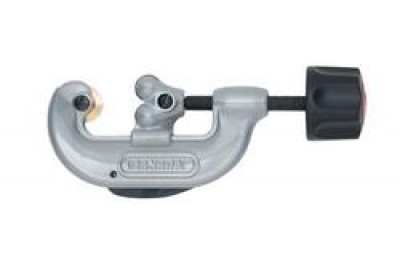

Tubing Cutter 1" To 1-1/8"

$13.95/Each
Quantity
Add to Wishlist
Part# 12-03347
MFR Model# 120

Overview

General's professional Tubing Cutter is our most comfortable and easy-to-use model, designed for a lifetime of dependable use. Smooth-action retractable jaws expand for tubing sizes from 1/8" to 1-1/8", and up to 3/16" in thickness. The cutter easily slices through copper, aluminum, brass, stainless steel and other tin-wall tubing. Uses the RW122 cutting wheel made from bearing tool steel for superior cutting power. Includes a retractable reamer with dual cutting edges.

DIMENSIONS
Package Specifications =
H: 8.6'' W: 3.75'' D: 1.6'' Cube: 0.0298 Weight: 9oz \ Weight: 0.56lbs
Shelf Pack Specifications =
H: 8.85'' W: 7.6'' D: 4'' Cube: 0.1556 Weight: 49.2oz \ Weight: 3.07lbs
Master Pack Specifications =
H: 20.25'' W: 15.75'' D: 9.5'' Cube: 1.7534 Weight: 420oz \ Weight: 26.25lbs

METRIC DIMENSIONS
Package Specifications =
H: 0.21844mm W: 0.09525mm D: 0.04064mm Cube: 0.00075692 Weight: 255.145708125gr \ Weight: 4.08233133Kg
Shelf Pack Specifications =
H: 0.22479mm W: 0.19304mm D: 0.1016mm Cube: 0.00395224 Weight: 1394.79653775gr \ Weight: 1.39479653775Kg
Master Pack Specifications =
H: 0.51435mm W: 0.40005mm D: 0.2413mm Cube: 0.04453636 Weight: 11906.7997125gr \ Weight: 11.9067997125Kg

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Newly redesigned contoured shape comfort gripdesign
  • Bearing tool steel cutter wheel
  • Wide hardened flared grooved rollers allow cutsclose to a flared end to avoid tube replacementin existing installations
  • Full sized fold out reamer with doublecutting edges
  • Cuts copper, aluminum, brass, thin wall tubingand stainless steel
  • Large knob with a covered extra cutter wheelstorage space
  • Replaceable cutting wheels: RW121/2, RW122
