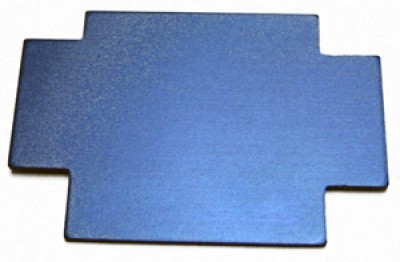

|One gauge measure -3, -4, -5, -6 rivets. Used to check for proper length of rivets Before setting. Eliminates measuring and guessing of rivets lengths. Works for both universal head and flush rivets. Precision machined to size from 2024 aluminum. Rivet size permanently stamped. Blue anodized finish.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
ECON RIVET LENGTH GAUGE
It does what it is supposed to do. One suggestion for improvement is that each cutout has two sides, an arrow indicating which side to use would eliminate confusion, especially on the smaller rivet sizes.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Its used like a bolt gauge. It has 4 different rivet lengths, you rest the head of the rivet on the edge to determine which length the rivet matches.
