Shop Head Rivet Gauge Set

Add to Wishlist
Part# 12-01533

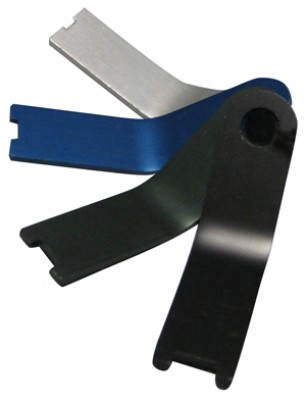

Set of four gauges for -3, -4, -5, -6 rivets. Each gauge measures Minimum height and Minimum diameter of shop heads AFTER setting. Eliminates guessing if your rivets are properly set. Works for measuring both universal head and flush rivets. Precision machined to size from 2024 aluminum. Rivet size permanently stamped on each gauge. Color coded anodized finish.
  • Frequently Purchased With
  • Customers Also Viewed


Came very quickly!!

January 20, 2020

Great product, price tag is a little too high.

Jabair K
August 26, 2020

Silvano G
August 26, 2017


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are the four different tools engraved or marked for each size?

Yes, each tool is engraved for size. There is a -3, -4, -5, and -6.

Q: Part # 12-01533 do these come with calibration certs? If not how can they be calibrated?

No, these do not come with calibration certs. They are made with a stamping die so there are no guidelines to calibrate this tool. The Gauge is just an aid, which makes technicians have a quick measurement.
