AXLE AND NOSE FORK NUT WRENCHES

Select Size:
1-1/2 inch1-3/4 inch
Quantity
Add to Wishlist

Overview

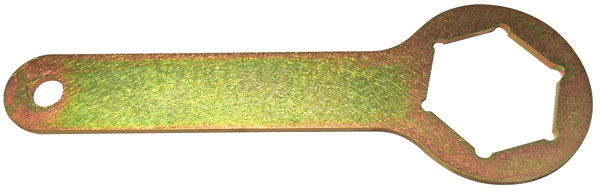

These great little specialty tools are a must for all aircraft owners and mechanics as well. They are available in two sizes and will cover almost all GA aircraft. They are precision laser cut from 4130 chrome moly aircraft grade steel and heat treated to a 42 rockwell hardness so they are very strong. They then get zinc plated to prevent corrosion and provide many years of service. These are .135 thick so you can rotate axle nuts and test fit the keepers or cotter pins in place. These tools weigh 4 oz. each.

Specifications

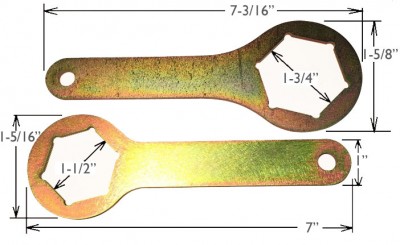

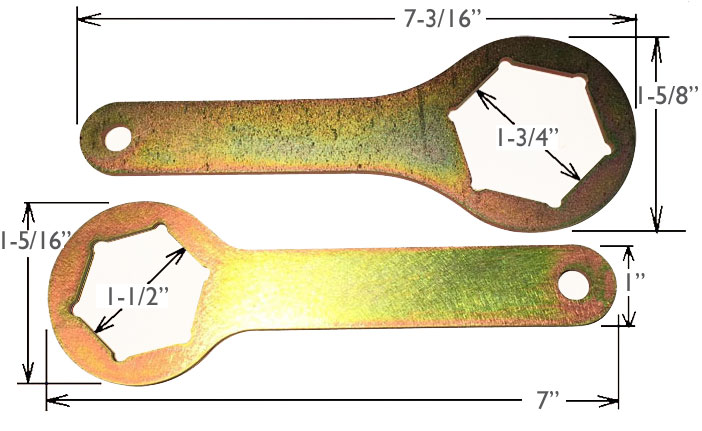

  • Small Wrench: 7" Length, 1-5/16" Width
  • Large Wrench: 7-3/16" Length, 1-5/8" Width

Reviews

Due to its straight design, this wrench does not allow access to the axle nut as the nut is slightly below the edge of the tire rim on most main gears.

Robert B
July 9, 2020
