Gmw-4M-595 Aurora Bearing

$20.85/Each
Quantity
Add to Wishlist
Part# 04-00858
MFR Model# GMW-4M-595

Overview

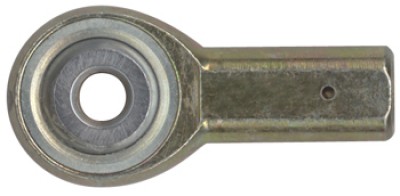

GMW-4M-595 Aurora Bearing

Specifications

  • Thread type: right hand
  • Thread configuration: female
  • B-Ball Bore [inch]: .2500
  • W Ball Width [inch]: .593
  • H-Head Width [inch]: .406
  • A-Base to Center [inch]: 1.469
  • D-Head Diameter [inch]: .938
  • K- Shank Diameter [inch]: .500
  • N- Base Shoulder Dia. [inch]: .312
  • Thread Size: 5/16-24
  • Thread Class: UNF-3B
  • a- Misalignment Angle [degrees]: 10
  • Ultimate Radial Static Load Capacity [lbs.]: 3,359
  • Approximate Brg. Weight [lbs]: .10
  • Lubrication Options: Zerk Fitting, Flush Fitting

Reviews

Very good quality. Could not find original part and this product was an excellent replacement.

Merle W
March 16, 2017
