Curtis Flush Mounted Valves (TSOd)

From $26.75 to $189.95
Valve
No.
Valve
Thread
Auto
Valve PN
Saf-Air
PN
PN Price Buy

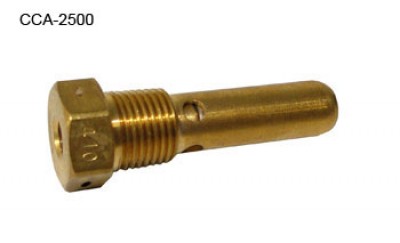

CCA-25001/8 NPTF391-18SA-18
05-04885
$26.85
Quantity

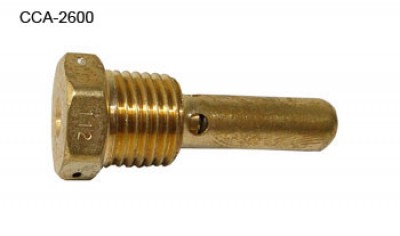

CCA-26001/4 NPTF391-14SA-14
05-04886
$26.85
Quantity

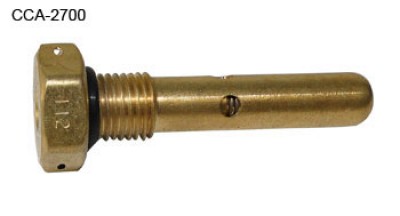

CCA-27003/8-24 UNFF391-32SA-32
05-04887
$26.85
Quantity

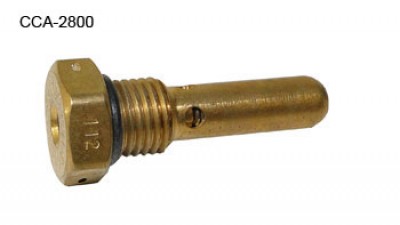

CCA-28007/16-20 UNFF391-72SA-72
05-04888
$26.85
Quantity

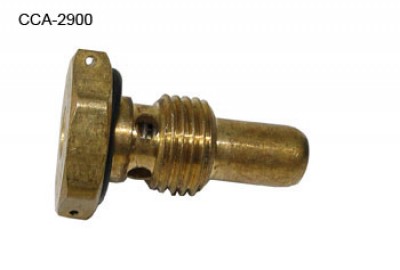

CCA-29001/2-20 UNFF391-82SA-82
05-06490
$26.75
Quantity
CCA-75003/4-16 UNF----
05-04057
$116.75
Quantity
CCA-7500-13/4-16 NF3----
05-03653
$94.75
Quantity
CCA-7500-23/4-16 UNF----
05-04058
$103.75
Quantity
CCB-375003/4-16 NF3----
05-12640
$189.95
Quantity
CCB-36450-53/4-16 NF3----
05-03658
$125.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Now FAA TSO-C76 Approved.

Brass Fuel Valves, Push to Open, Non-Lock Open, Use Pin Type Cup.
Use Curtis Drain Cup - CCA-39680.

Curtis Superior Valve is experienced in valve design and can help solve your valve problems. In most cases a standard Curtis Superior Valve will do the job. Or possibly a slight modification of a production unit will answer a specific problem. We will be glad to give you any assistance you may require with your Quick Drain Valve application.

MAINTENANCE / CMM

Curtis Superior Valves are designed for installation in a standard NPT port for NPT threaded valves or an AND-10050 stlye port for UNF threaded valves. Use a sealant on NPT threaded valves or a fuel resistant o-ring of the proper size for UNF threaded valves. Refer to aircraft manufacturers torque specifications for the aircraft in which it is being used. Curtis Superior Valves require no special maintenance. Keep them reasonably clean and replace according to the prescribed synthetic rubber maintenance schedule for the aircraft in which they are used or 10 year usable life per Curtis Superior Valve whichever occurs first. Curtis Superior Valves cannot be OVERHAULED. Replace the entire valve per the maintenance schedule of the aircraft in which it is used or usable life per Curtis Superior Valve should it begin to leak.

OVERHAUL

Due to the low replacement cost of Curtis Quick Drain Valves versus the cost of replacement seals, breakage of seals in overhaul installations and labor costs, it is not recommended they be overhauled. Replace the entire valve in accordance with the instructions in MAINTENANCE above or should they begin to leak.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

In The Box


  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Gandera C Verified Purchase

Curtis Drain Valve CCA-2700

February 13, 2024

Fast shipping, product is perfect

Helicopter S Verified Purchase

Curtis Drain Valve CCA-2800

March 17, 2023

Magaero L Verified Purchase

Curtis Drain Valve CCA-2800

January 3, 2023

Michael M Verified Purchase

Curtis Drain Valve CCA-2800

October 6, 2022

Mine is leaking a bit. Not sure if the o-ring has bunched up or if I have a rough surface...

Joseph J Verified Purchase

Curtis Flush Mounted Fuel Valve CCA-2900

August 11, 2022

Worked great and doesnt stick like the old one!

Paul D Verified Purchase

Curtis Drain Valve CCA-2800

July 26, 2022

Ordered it as a replacement for my mechanic who put one he had in my C172D. This part from ACS is perfect.

William T Verified Purchase

Curtis Drain Valve CCA-2800

April 13, 2022

Douglas E Verified Purchase

Curtis Fuel Valve CCA-2500

April 7, 2022

Quelity product,thanks

Jonathan T Verified Purchase

Curtis Flush Mounted Fuel Valve CCA-2900

April 3, 2022

Quick and easy to order,with the serial number and models chart,thanks

Jonathan T Verified Purchase

Curtis Drain Valve CCA-2700

April 3, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the size or part number for the oring that goes with this application?

Curtis does not provide the sizes or part numbers for replacement orings. On their web site, curtissuperiorvalve.com , they suggest to use the appropiate size fuel resistant o-ring, or replace the unit. Please review their web site, and if you decide to use a fuel resistant o-ring, you can view our selection at http://www.aircraftspruce.com/catalog/appages/fuelorings.php?clickkey=3766
