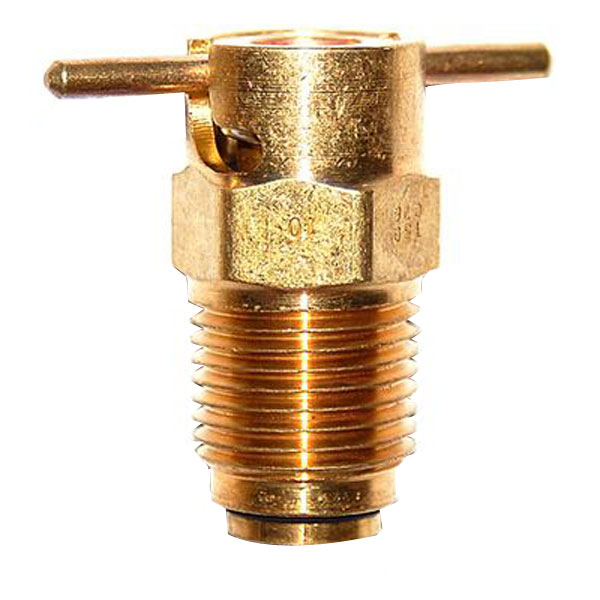

Curtis Pipe Thread Drain Valve - CCA-1700

$39.50/Each
Part# 05-01872
MFR Model# CCA-1700

Overview

Quick opening brass drain valve for aircraft oil or fuel systems. A slight twist opens valve. No safety wire needed in closed position. FAA approved. TSO-C76 Approved.

Note: FAA Approval applies to fuel applications only. NOT FAA Approved for oil applications.

CCA-1700 SPECIFICATIONS:
  • Brass
  • Thread Size: 1/2-Inch NPT
  • Length: 2.154-Inch
  • Lock Wire Drilled
  • Action: Push to Open, Turn to Lock
  • Conforms To: USAF Spec. 28208, NSN-2915-00-689-3000, TSO-C76

Curtis Superior Valve is experienced in valve design and can help solve your valve problems. In most cases a standard Curtis Superior Valve will do the job. Or possibly a slight modification of a production unit will answer a specific problem. We will be glad to give you any assistance you may require with your Quick Drain Valve application.

MAINTENANCE / CMM

Curtis Superior Valves are designed for installation in a standard NPT port for NPT threaded valves or an AND-10050 stlye port for UNF threaded valves. Use a sealant on NPT threaded valves or a fuel resistant o-ring of the proper size for UNF threaded valves. Refer to aircraft manufacturers torque specifications for the aircraft in which it is being used. Curtis Superior Valves require no special maintenance. Keep them reasonably clean and replace according to the prescribed synthetic rubber maintenance schedule for the aircraft in which they are used or 10 year usable life per Curtis Superior Valve whichever occurs first. Curtis Superior Valves cannot be OVERHAULED. Replace the entire valve per the maintenance schedule of the aircraft in which it is used or usable life per Curtis Superior Valve should it begin to leak.

OVERHAUL

Due to the low replacement cost of Curtis Quick Drain Valves versus the cost of replacement seals, breakage of seals in overhaul installations and labor costs, it is not recommended they be overhauled. Replace the entire valve in accordance with the instructions in MAINTENANCE above or should they begin to leak.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Arrived as advertised - will install at next oil change!

M.s. D Verified Purchase

CURTIS DRAIN VALVES CCA-1700

March 1, 2024

Worked perfectly and is very good quality.

Scott C Verified Purchase

CURTIS DRAIN VALVES CCA-1700

December 14, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the CCA-1700 approved for installation as an oil drain on a certified aircraft? Your website seems to indicate yes but the Curtis website says Non certified aircraft for oil drain. Several other Curtis drains on your website have a not for oil in certified aircraft notation. I would like to clarify before ordering.

CCA-1700 is not approved for a certified aircraft application. We have a note stating the approval only applies to fuel applications on the web page with all the Curtis units listed, and will add this note to the CCA-1700 page listing it alone. Sorry for any confusion this has caused.

Q: What sealant should be used when installing this Curtis valve CCA-1700?

Curtis recommend a either Teflon tape or something like Ez-Turn.
