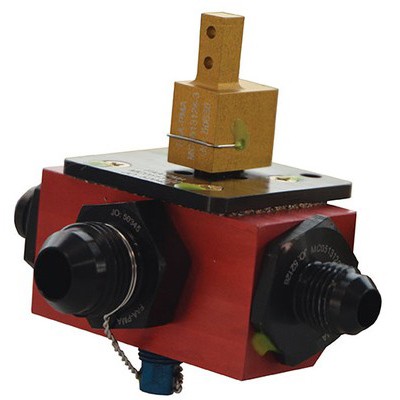

Fuel Selector Valve Assembly For Cessna 172 - MC0513120-8
$1904.00/Each
Part# 05-27271
MFR Model# MC0513120-8
MFR Model# MC0513120-8
FREE Shipping
Overview
| McFarlane MC0513120-8 Fuel Selector Valve Assembly, equivalent to OEM 0513120-8. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Improved corrosion resistance: McFarlane’s new valves are totally anodized where the original valves were Alodine conversion coated. This change drastically improves the surface durability, wear resistance, and corrosion resistance of all the components, and they will stay pretty too! Corrosion protection is important since the valves are at the lowest point in the fuel system without any upstream water separation or contaminate screening. We have also eliminated the brass bushing that corrodes the cam.
- Improved O-ring retention: Modern machining processes lets us precision machine the O-ring capture cavity. The original valve O-rings were retained by staking (stamp forming) the housing. This process was inconsistent at best and distressed and weakened the surrounding aluminum structure.
- More balanced fuel flow: Yesterday’s manual machining process of the original valves were often inconsistent enough to let one port flow more fuel than needed while the other port might flow a very marginal amount of fuel. The new McFarlane valve is computer machined for a perfect balance of fuel flow.
- Fully Tested: It will be pressure, functional, and flow tested to perform to the highest standards.
Applications
| Make | Series | Model | Beginning S/N | Ending S/N | Quantity Per Aircraft | Location |
|---|---|---|---|---|---|---|
| Cessna | 172 | 172F (T-41A) | 17251823 | 17253392 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | 172G | 17253393 | 17254892 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | 172H (T-41A) | 17254893 | 17256512 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | 172I | 17256513 | 17257161 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | 172K | 17257162 | 17259223 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | 172L | 17259224 | 17260758 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | 172M | 17260759 | 17263458 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | F172F | F172-0086 | F172-0179 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | F172G | F172-0180 | F172-0319 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | F172H | F17200655 | F17200754 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | F172H | F172-0320 | F172-0654 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | F172K | F17200755 | F17200804 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | F172L | F17200805 | F17200904 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | F172M | F17200905 | F17201234 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | FR172E | FR17200001 | FR17200060 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | FR172F | FR17200061 | FR17200145 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | FR172G | FR17200146 | FR17200225 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | FR172H | FR17200226 | FR17200350 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | FR172J | FR17200351 | FR17200530 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | R172E (T-41B,C,D) | R172-0001 | R1720335 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | R172F (T-41D) | R172-0336 | R172-0409 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | R172G (T-41C,D) | R1720410 | R1720444 | 1 | FUEL SELECTOR VALVE |
| Cessna | 172 | R172H (T-41D) | R1720445 | R1720620 | 1 | FUEL SELECTOR VALVE |
