PROP HUB FRONT PLATES

Select Bolt Pattern:
SAE1 (Continental)SAE2 (Lycoming)
Quantity
Add to Wishlist

Overview

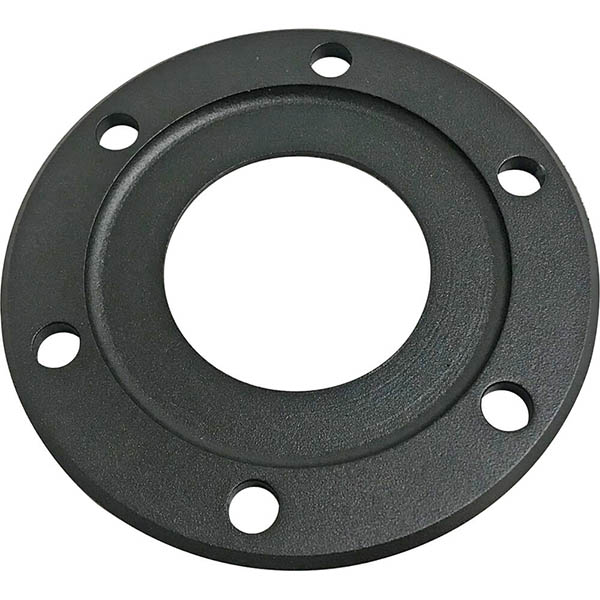

Required for wooden propellers. Flange equivalent to Cont. P/N 3991. For use with A-65, C- 85 installations or Lyc. 0-235 with SAE1 (4-3/8) bolt pattern.
P/N 10351 Cont.

Flange equivalent to Lyc. P/N 45688, for use with Lyc. 0-235 thru 0-360 engines with SAE2 Bolt Pattern engines.
P/N 10352 Lyc.
Made in USA

Reviews

Perfect

Douglas M Verified Purchase

PROP HUB FLANGE PLATE # 10351

June 10, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the thicknesses of these prop hub front plates?

For the Continental model, part # 10351, the plate thickness is 1/4". For the Lycoming model, part # 10352, the plate thickness is 3/16".

Q: Is this a steel part? If so, what type of steel?

It is 1018 steel.

Q: What is the diameter of this (part # 10351)?

The OD is 6.25.

Q: What is diameter of 10352?

OD is 5.9 inches, ID is 3.5 inches.
