|5-Inch Skull Spinner Dome||Wood or Metal Props on Continental A-65 to O-200 engines|
|5-Inch Skull Spinner Dome - With mounting bracket & hardware||Wood or Metal Props on Continental A-65 to O-200 engines|
|6-Inch Skull Spinner Dome||Lycoming O-235 to O-360 engines and Cessna 170s|
|6-Inch Skull Spinner Dome - With mounting bracket & hardware||Lycoming O-235 to O-360 engines and Cessna 170s|
|Skull Spinner Dome Mounting Bracket & Hardware||For both 5-Inch & 6-Inch Skull Spinner Dome|

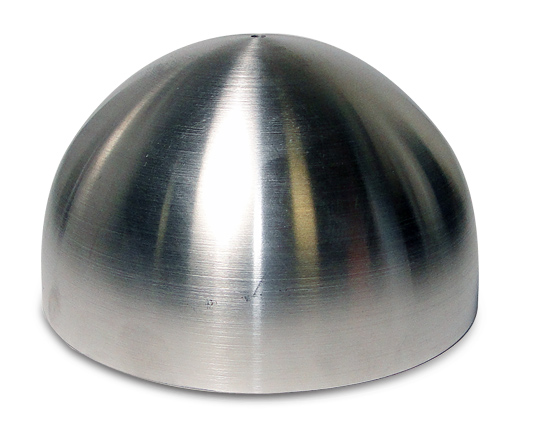

Skull Cap Spinners for your A-65 to O-200 Continental or O-235 to O-360 Lycoming engines.
5-inch diameter - For wood or metal props on Cont. A-65 to O-200 engines.
6-inch diameter - For Lycoming O-235 to O-360 engines and Cessna 170s. Measures 6-1/4" diameter to clear 6".
Made in USA
5" SKULL SPINNER DOME UNPOLISH
Great product, great price. Bracket made the spinner very easy to install.
This is a generic spinner and it does just fine. I didnt want to spend a lot of money. Nearly perfect for my experimental to cover the prop bolts.
Product looks good & works. Only negative is this:There wasnt a screw included, which cost me time & worry. Previous spinner dropped off while in flight, so I needed it. Seems like most purchasers would be in a similar situation. Including a $.35 screw would be VERY helpful & cost effective. Lack of screw cost stars in rating.
I normally don’t do reviews that much but the skull cap spinner they sent me is not the same as what’s in the picture. I wanted the pointed spinner just like my old one and the one shown in the picture but this one is more bowl shaped and rounded on top. It’s a nice looking spinner other than all the lines in it.
I bought the unpolished 5 inch skull cap spinner for my 46 J-3C Cub because Im really really good at polishing things. But when I received this it was HORRIBLE. It had so many grooves in it from the tools where they made it and I couldnt just polish up. I had to make a jig for it to fit in my drill press and I had to cut it down with 220 all the way to 10,000 grit sand paper and then buff it with polish. But it turned out ok I guess.
hole is not in the center, will be returning it
5" SKULL SPINNER DOME UNPOLISH
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Part # 10211 comes with the spinner dome along with a bracket and hardware.
This is actually 6.16" ID.
No, these are not FAA PMA Approved.
Yes, these can be primed and painted.
It is stress relieved and plated 14 gage mild steel for the 10203 bracket and .040 minimum 0 temper 6061 Aluminum for the 10201 spinner.
They are both 3.65 +/-.062 tall and are .040" minimum thickness. 1.016mm thick.
