THERMOID AERODUCT CAT DUCTING - FULL LENGTH ONLY

From $63.80 to $143.75
Description ID Part No. Dash No. Price Buy
Ducting CAT/5ft piece5/8
05-11867
-2A$69.75
Quantity
Ducting CAT/10ft piece3/4
05-11878
-3$79.95
Quantity
Ducting CAT/10ft piece1
05-11862
-4$63.80
Quantity
Ducting CAT/10ft piece1-1/4
05-11863
-5$64.75
Quantity
Ducting CAT/10ft piece1-1/2
05-12437
-6$65.75
Quantity
Ducting CAT/10ft piece1-3/4
05-12447
-7$67.85
Quantity
Ducting CAT/10ft piece2
05-12433
-8$76.95
Quantity
Ducting CAT/10ft piece2-1/4
05-12449
-9$73.85
Quantity
Ducting CAT/10ft piece2-1/2
05-12434
-10$81.75
Quantity
Ducting CAT/10ft piece2-3/4
05-12450
-11$87.75
Quantity
Ducting CAT/10ft piece3
05-12438
-12$95.00
Quantity
Ducting CAT/10ft piece3-1/4
05-12459
-13$107.75
Quantity
Ducting CAT/10ft piece3-1/2
05-12458
-14$110.99
Quantity
Ducting CAT/10ft piece4-1/2
05-12457
-14$121.75
Quantity
Ducting CAT/10ft piece3-3/4
05-12463
-15$116.75
Quantity
Ducting CAT/10ft piece4
05-12442
-16$118.75
Quantity
Ducting CAT/10ft piece5
05-12448
-20$129.75
Quantity
Ducting CAT/10ft piece6
05-12454
-24$143.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

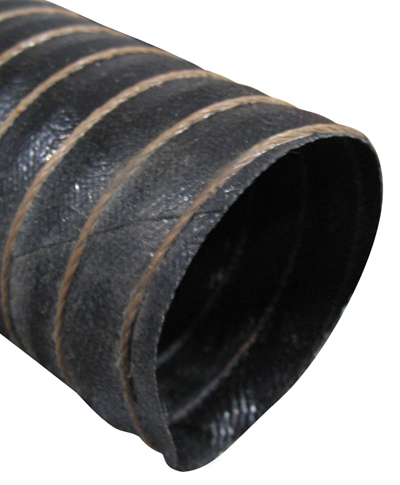

“CAT” - “CAT” type flexible hot or cold air ducting is extremely lightweight and highly flexible. Short lengths can be joined together to form a continuous length. Made of a single ply black neoprene impregnated fiberglass with a spiral copper coated steel wire inside and wrapped with fiberglass cord on the outside. Suitable for conveying fumes and air a temperatures from -65° to over 350°F. Not recommended for handling liquids or highly abrasive materials, or for negative pressure applications.

Sold in full length only - cannot be cut to size.

Features: Extremely lightweight and highly flexible. Short lengths can be joined together to form a continuous length.

Diameters not listed are available as a special order in full lengths only. Order CAT 2-3/4" diameter for Whisperflow air vents. Full factory lengths are up to 13 ft. Varies by warehouse. For lengths over 12 ft, contact sales to confirm availability.

Other Ducting Types
  • “SCAT” - “SCAT” type ducting has the same type construction as “CAT” except with red silicone rubber impregnation. For use in conducting extremely cold or hot air with temperatures from -65° to over 550°F. Not recommended for negative pressure applications.

    Click Here for SCAT Ducting

  • “CEET” - “CEET” type ducting has two plies of neoprene-impregnated fiberglass, similar to CAT except wire between plies. For use in hot or cold air applications and for conveying fumes at temperatures ranging from -65° to over 350°F. Not recommended for handling liquids or highly abrasive materials, or for negative pressure applications.

    Click Here for CEET Ducting

  • “SCEET” - “SCEET” type ducting has two plies of silicone rubber-im pregnated fiber glass, similar to SCAT except wire be tween plies. Ideal for use in conducting extremely cold or hot air at temperatures from -80° to over 550°F, and for conveying fumes. Not recommended for handling liquids or highly abrasive materials, or for negative pressure applications.

    Click Here for SCEET Ducting
