360 Avionics ELM45 AutoPilot Control Panel
$549.00/Each
Part# 11-21360
MFR Model# ELM45
MFR Model# ELM45
FREE Shipping
- JUMP TO
- Overview
- Features
- Specifications
- Reviews
- Q&A
Overview
|

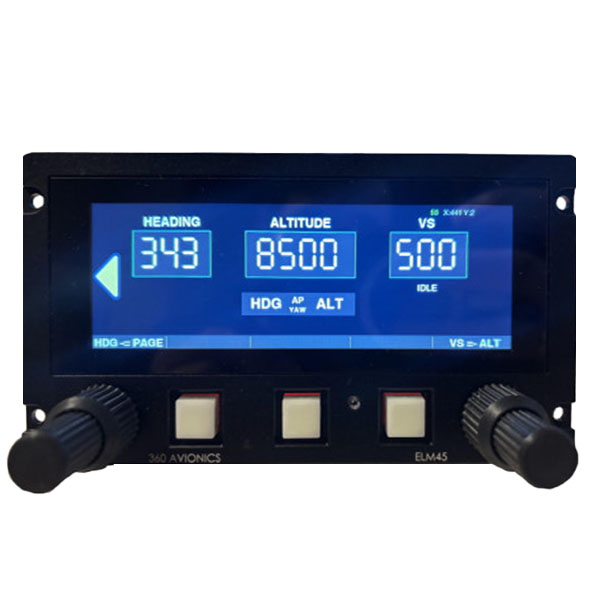

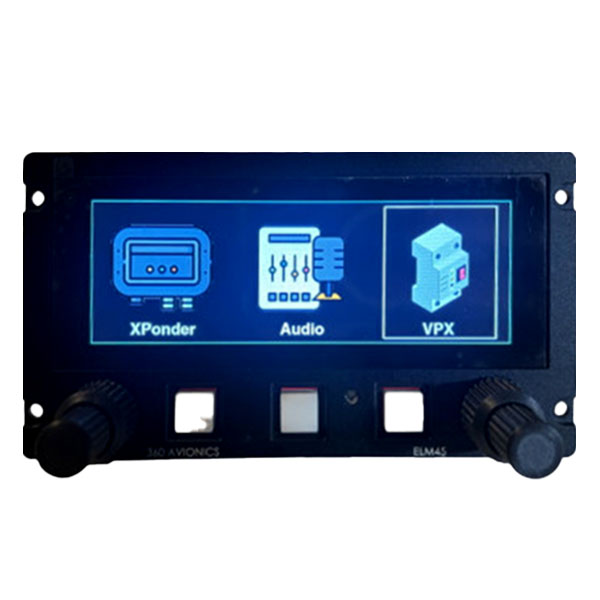

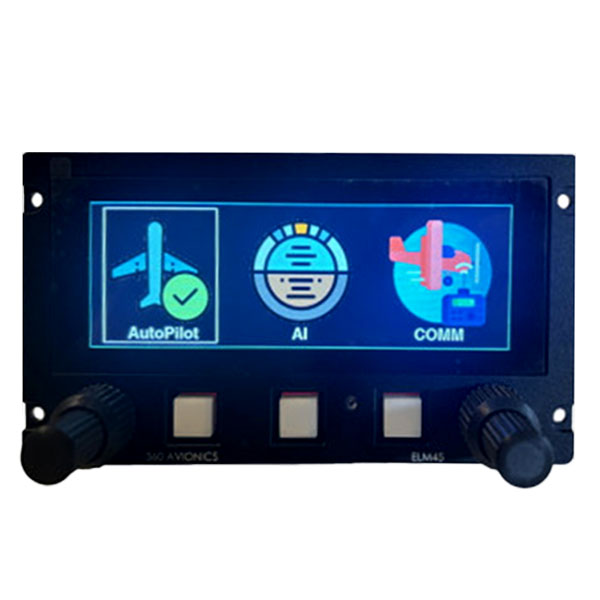

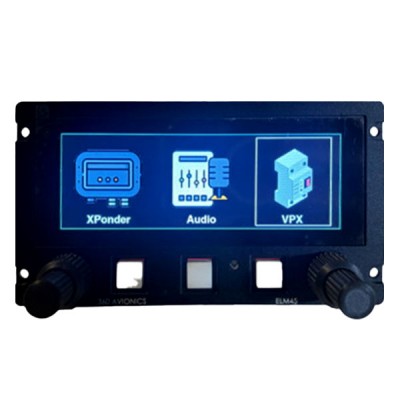

The ELM45 is an advanced autopilot remote control panel designed to streamline cockpit operations while offering enhanced safety and control features. In addition to simplifying autopilot management, it serves as EnGood engine monitoring backup display and Traffic Awareness Display (with use of ADSB-01 module), and offers expanded compatibility with other avionics systems.
In-Flight Capabilities: Ultra-Bright Display: 4.58" high-brightness screen remains easily readable in all lighting conditions, including direct sunlight. Intuitive Controls: Dual rotary knobs and three programmable buttons ensure smooth and precise operation. Please note that this version is a AP control panel with extra features only. It does not provide backup artificial horizon and other features except the ones mentioned above. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features

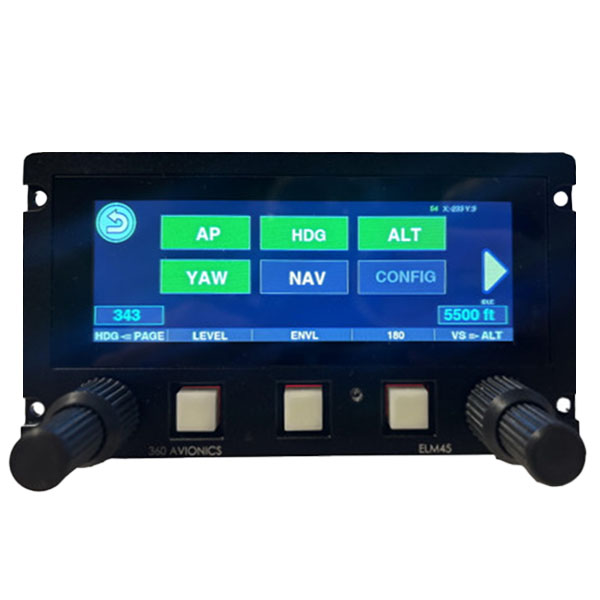

Capacitive Touch Display: Intuitive interface for quick and precise control.Autopilot Remote Control: Effortlessly manage AutoFlight autopilot from ELM8xx/1xxx series EFIS.

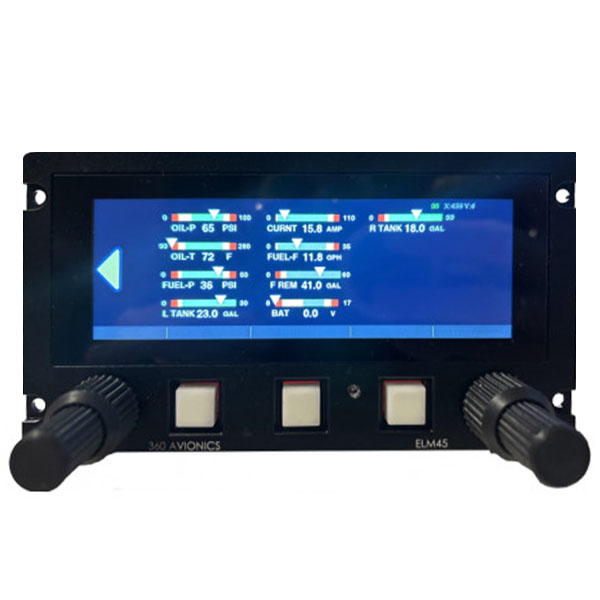

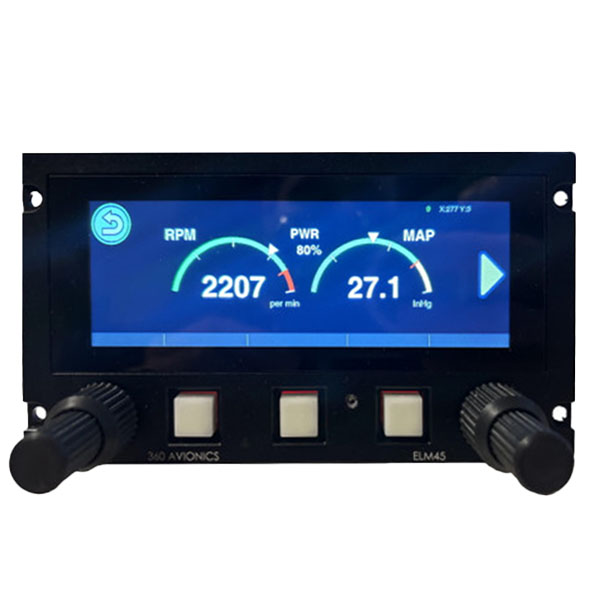

EnGood Engine Monitoring: Displays real-time engine parameters (compatible with EM01).
Traffic Awareness Display: Shows ADSB traffic around (only when connected to ADSB-01 receiver)
Specifications
Input Voltage: +10V to +28V DCDimensions: 145mm x 80mm x 20mm
Weight: 180g
Display: 4.58" diagonal, 960x320 pixels (ultra-bright)
Communication: RS-232 ports (1), speeds 2400-115200 baud, CAN bus
SD Card: 16GB FAT formatted (supports up to 16GB)
